Wall corner protect roll forming machine

Short Description:

Wall corner protect roll forming machine Wall corner protect roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic mould cutting and 3 meters air-operated product runout table. Wall corner protect roll forming machine automatic working and controled by Delta PLC control system, we also have Mitsibishi  PLC for option. Wall corner protect roll forming machine Parameters NO             Type  Specification 1 Raw material Type GI...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Wall corner protect roll forming machine

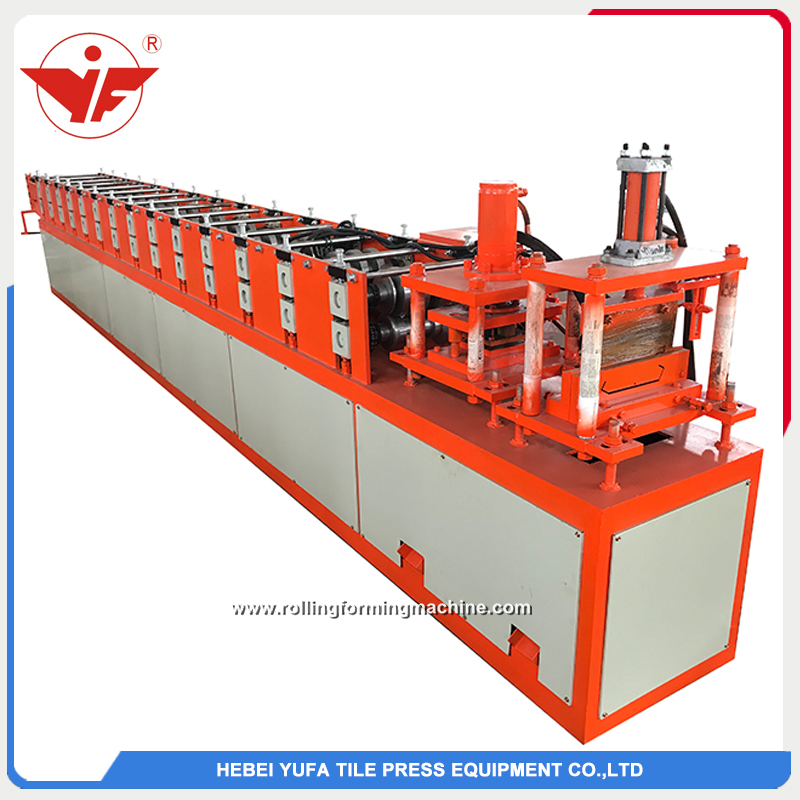

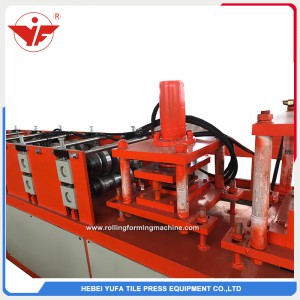

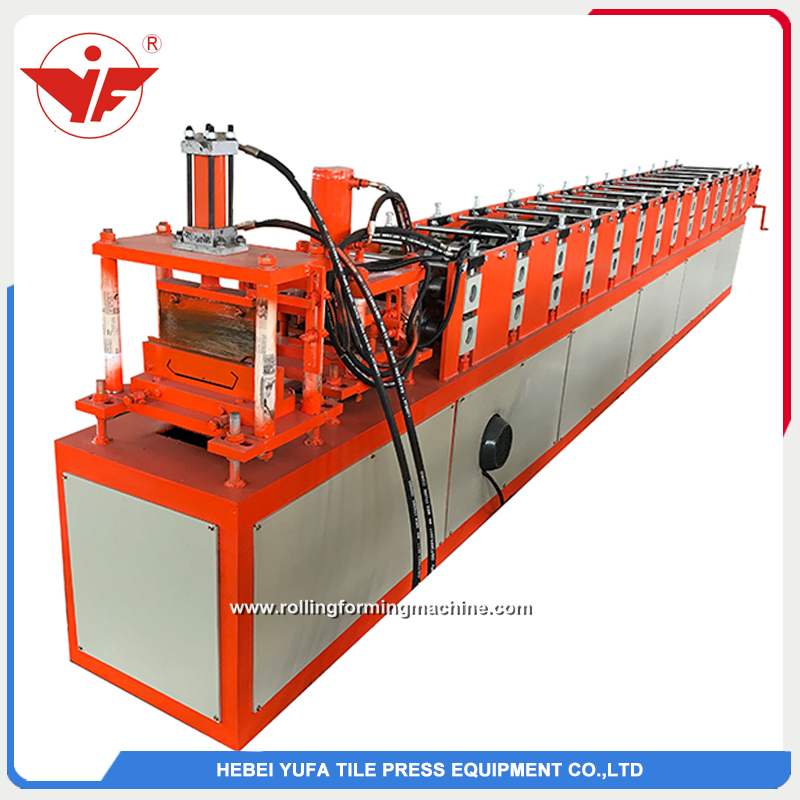

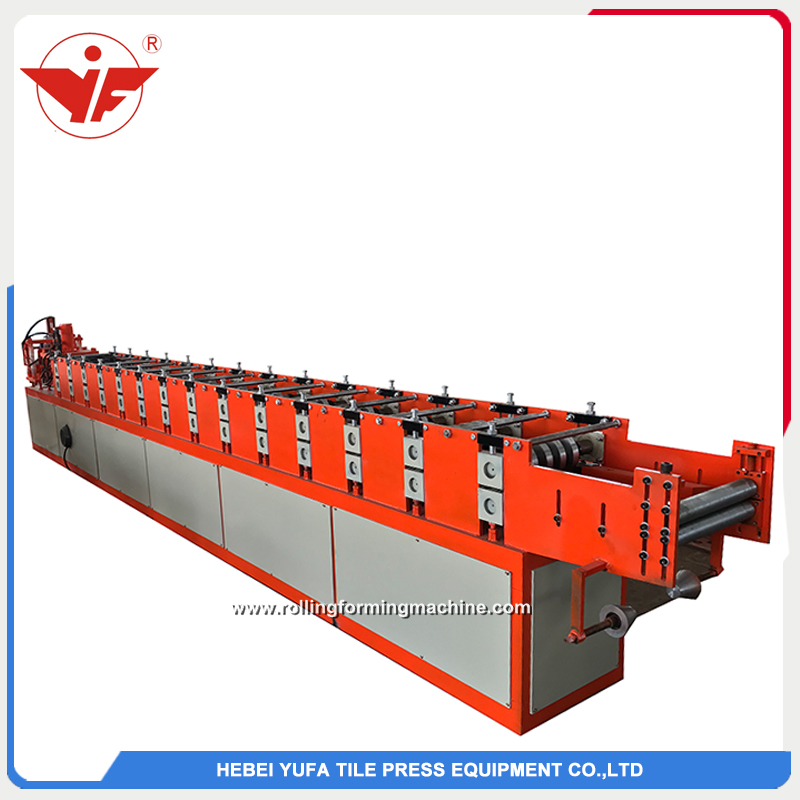

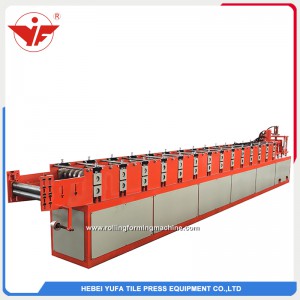

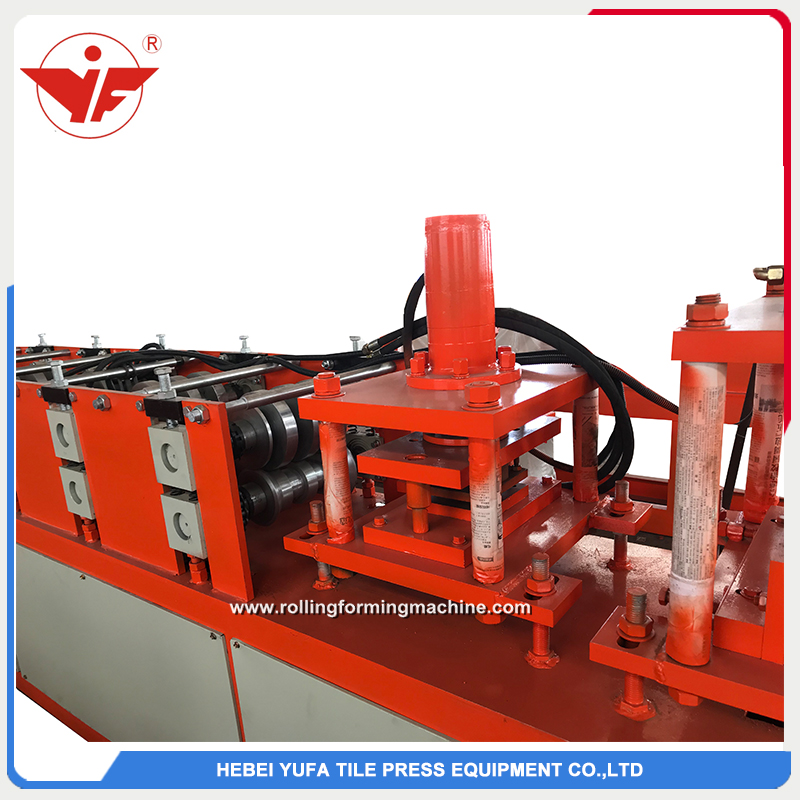

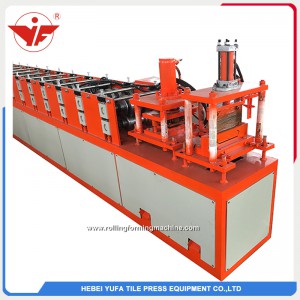

    Wall corner protect roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic mould cutting and 3 meters air-operated product runout table.

    QQ截图20170329205629
    Wall corner protect roll forming machine automatic working and controled by Delta PLC control system, we also have Mitsibishi  PLC for option.

    Wall corner protect roll forming machine Parameters

    NO

                Type

     Specification

    1

    Raw material Type GI
    Feeding width 400 mm
    Thickness 0.5 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 14 row
    Diameter of shaft 70 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 20 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-15 m/min

    4

    Power Driving way Chain 1.5 inch
    Main motor 11 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English







  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
