good quality aluminium corrugating colour coated roofing plate roof panel rolling machine manufacturer

Short Description:

1.Description of corrugating colour coated roofing plate roof panel  rolling machine The complete corrugated roofing sheet making machine line includes de-coiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the wave panel machine produces it automatically. The machines are easy to operate and running stable. 2.Corrugated panel profile:(customized...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    1.Description of corrugating colour coated roofing plate roof panel  rolling machine

    The complete corrugated roofing sheet making machine line includes de-coiler, main machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system. We simply program the pieces and length we need in the computer and the wave panel machine produces it automatically. The machines are easy to operate and running stable.

    QQ截图20170329205629

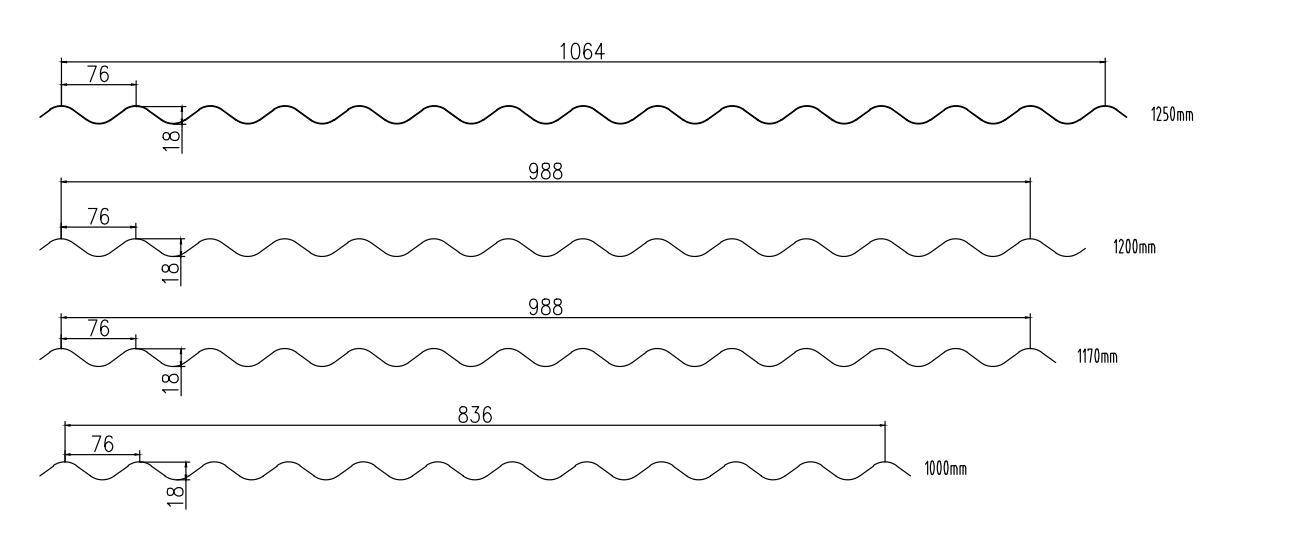

    2.Corrugated panel profile:(customized is welcome)

    1064

    3.Diameter of corrugating colour coated roofing plate roof panel  rolling machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width 1000 mm
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 18 row
    Diameter of shaft 80 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 5.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English
