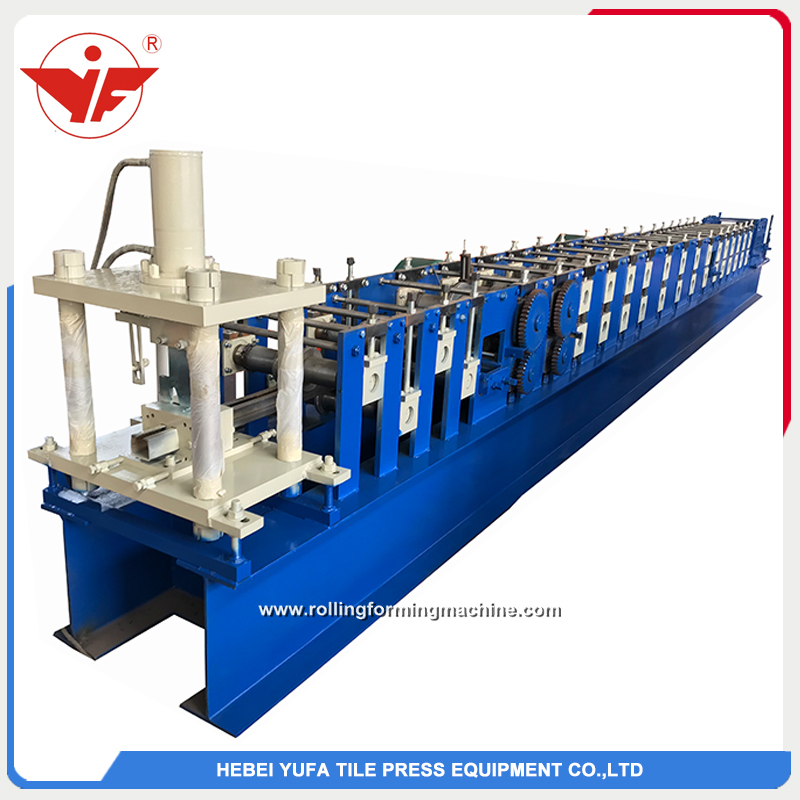

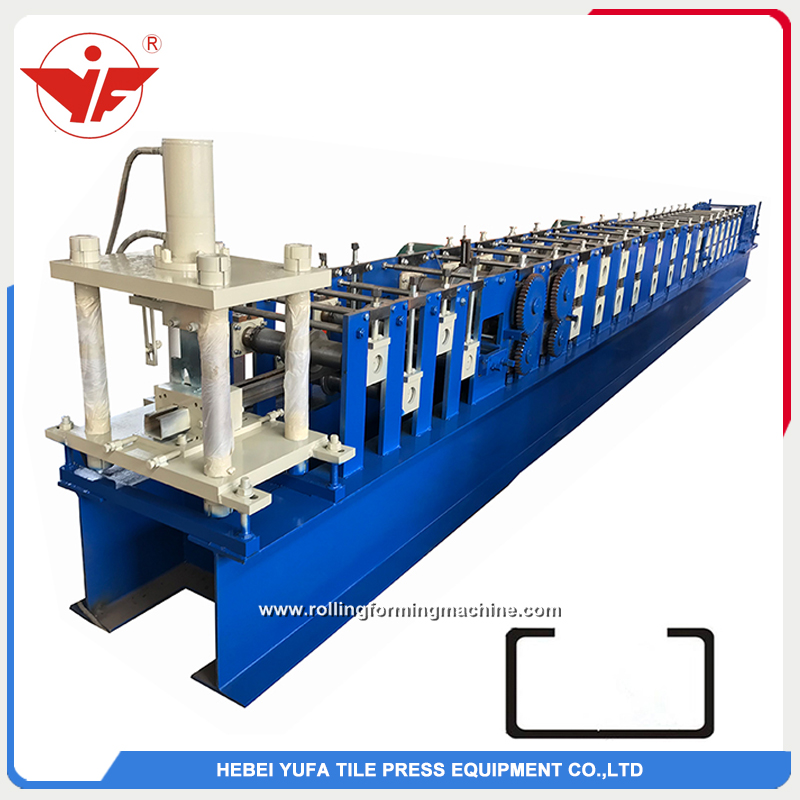

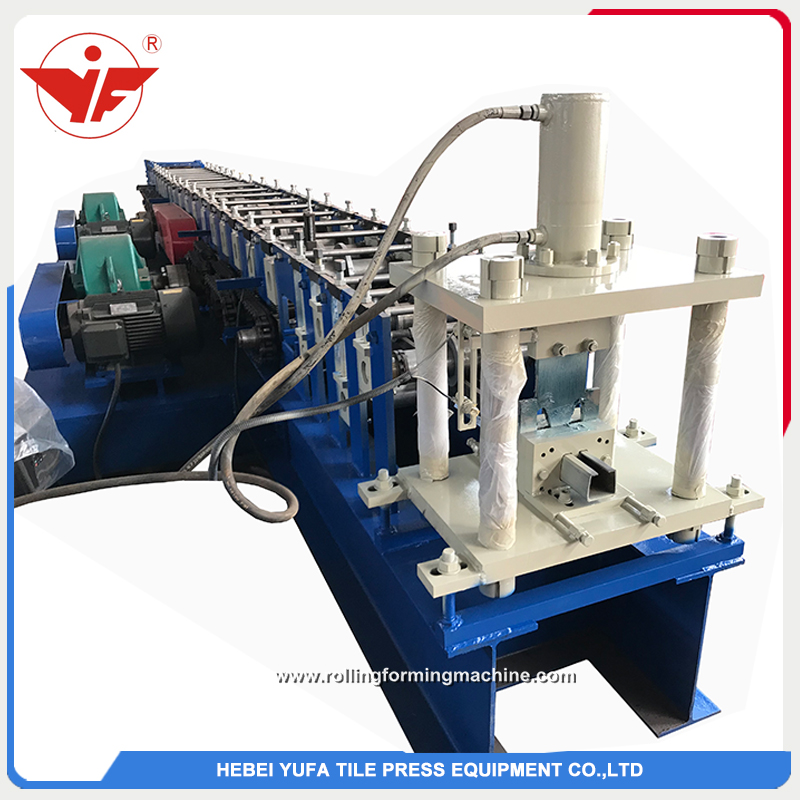

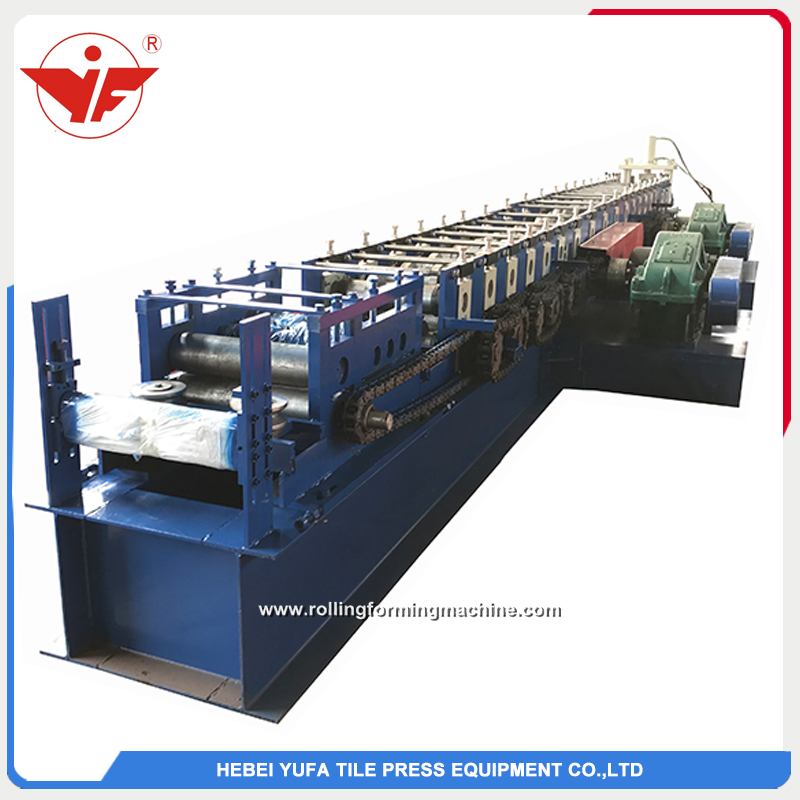

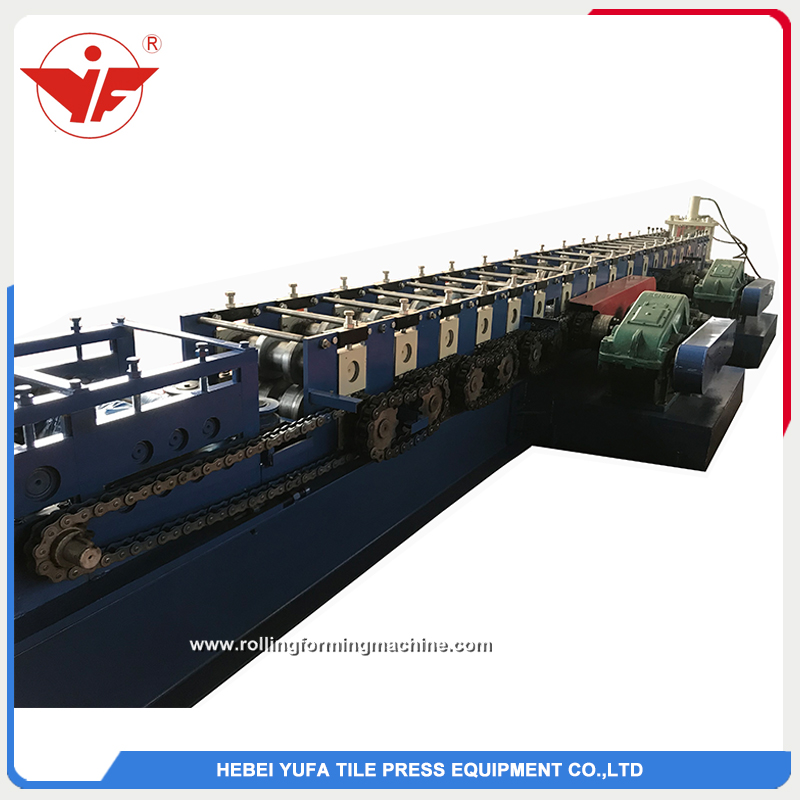

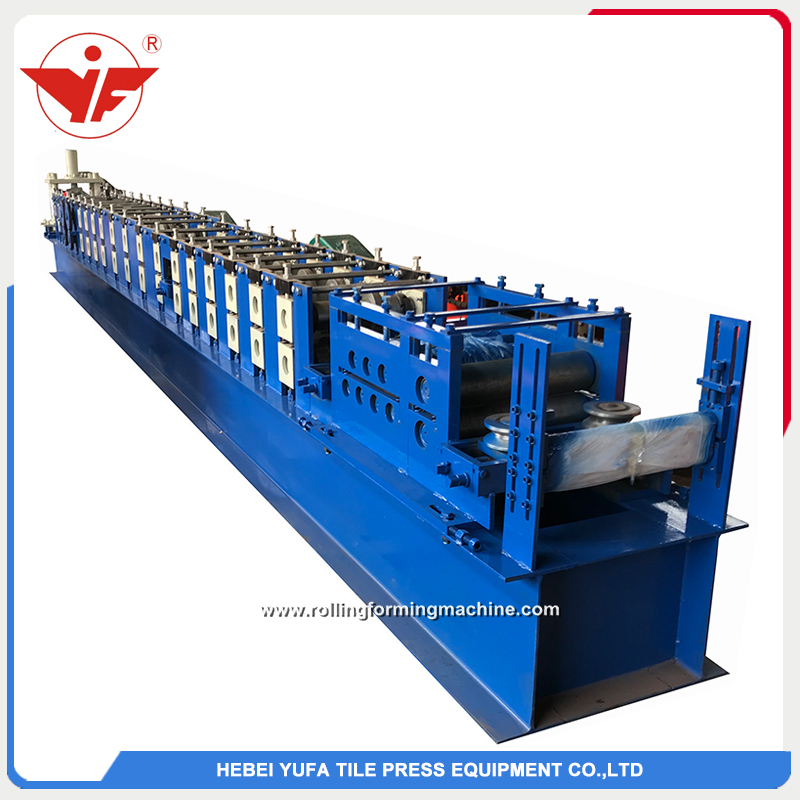

Ukraine used 3.5mm C purlin strong roll forming machine

Short Description:

Description of Ukraine used 3.5mm C purlin strong roll forming machine    Now our Floor used punching hole machine have been exported to many countries,the most important is that all you need can be customized. Working Process    The complete Floor used punching hole machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate. Machine parameters of Ukraine used 3.5mm C p...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of Ukraine used 3.5mm C purlin strong roll forming machine

       Now our Floor used punching hole machine have been exported to many countries,the most important is that all you need can be customized.

    Working Process

       The complete Floor used punching hole machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate. QQ截图20170329205629

    Machine parameters of Ukraine used 3.5mm C purlin strong roll forming machine

    NO

                Type

    Specification

    1

    Raw material Type GI
    Thickness 3.5 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 16 row
    Diameter of shaft 90mm
    Shaft material 45# with 0.05mm chrome
    Roller material Bearing steel
    Type Chinese type
    Frame 400mm H-beam
    Frame thickness 25 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 20-30 m/min

    4

    Power Driving way 1.5 inch double chain
    Main motor 22 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English







  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
