Steel Floor decking roll forming machine

Short Description:

Steel Floor decking roll forming machine This is the new type we engineer for floor deck roll forming machine, used for building surface panel.if it can meet your need, please contact us. floor deck  has many advantages, such as high wave, high strength, high automation and low cost.   Steel Floor decking roll forming machine main parameters: NO Type   Specification 1 Raw material Type gi Thickness 0.5 to 1.0mm 2 Final product Four waves 1000mm 3 Decoiler Operat...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Name: Steel Floor decking roll forming machine
  • Usage: Floor decking
  • Product Detail

    FAQ

    Product Tags

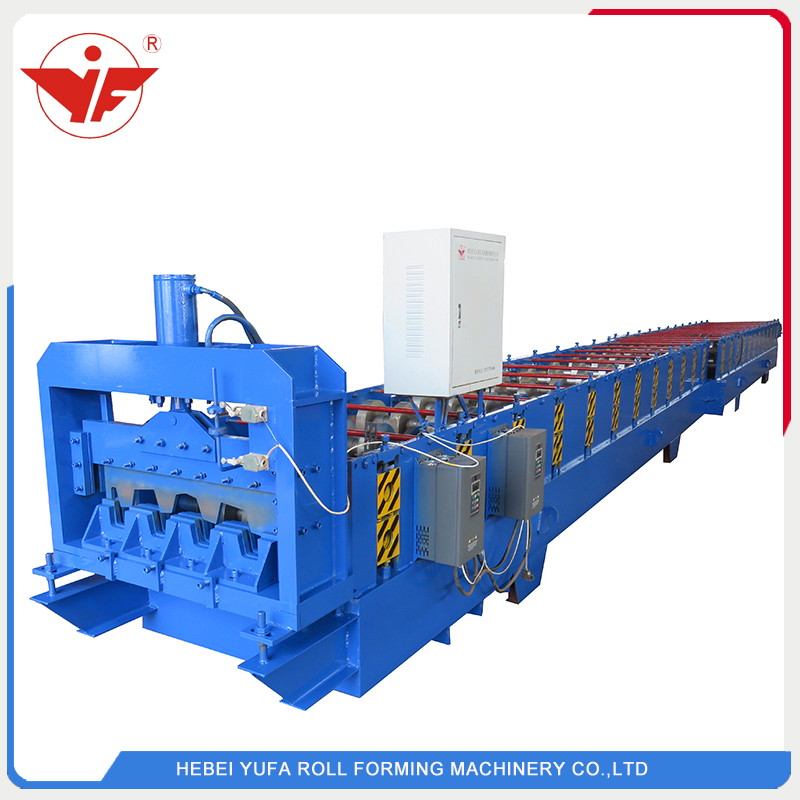

    Steel Floor decking roll forming machine

    This is the new type we engineer for floor deck roll forming machine, used for building surface panel.if it can meet your need, please contact us. floor deck  has many advantages, such as high wave, high strength, high automation and low cost.

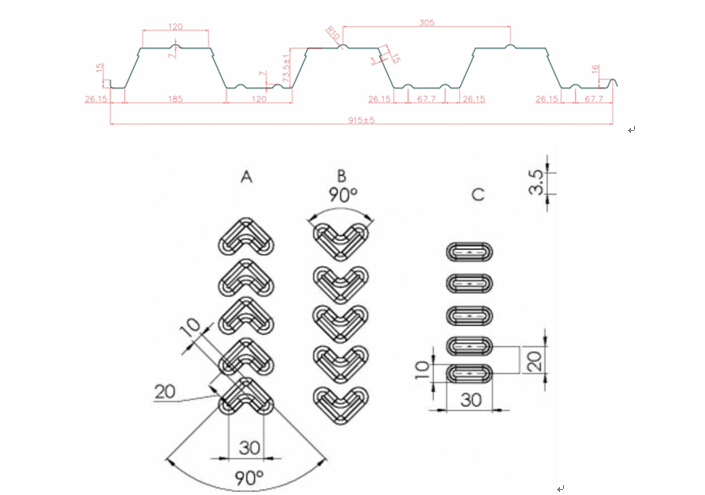

    used for building surface panel

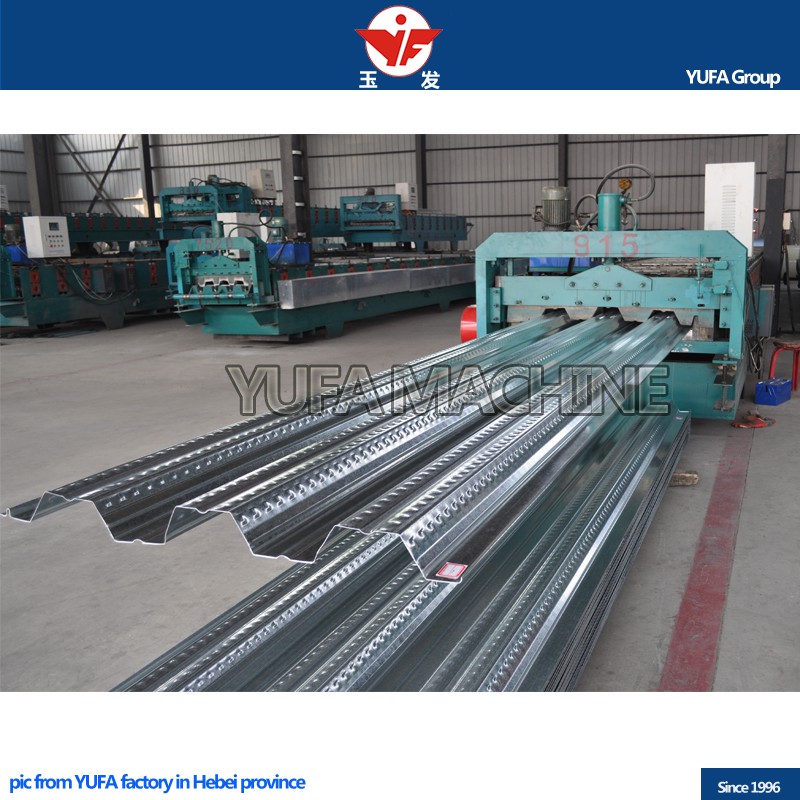

    915 floor deck

      Steel Floor decking roll forming machine main parameters:

    NO

    Type

      Specification

    1

    Raw material

    Type gi
    Thickness 0.5 to 1.0mm

    2

    Final product

    Four waves

    1000mm

    3

    Decoiler

    Operation Manual
    Weight capacity 8 Tons

    4

    Main body

    Roller station 28 stations
    Frame 450H-Beam

    Diameter of shaft

    90mm

    Material of shaft

    45#steel
    Forming speed 15m/min
    Roller material 45# steel with hard chrome coated

    5

    Hydraulic Cutter Material Cr12
    Operation Automatic

    6

    Produce platform

    Length About 15000mm

    Welcome to our factory test Steel Floor decking roll forming machine.

    轮播-Steel Floor decking roll forming machine

  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
