Simple low rib wall color coated roofing sheet roll forming machine

Short Description:

1.Description of Simple low rib wall color coated roofing sheet roll forming machine This Cold steel roofing panel roll forming machine is designed by our professionals utilizing high grade component. Steel type Roofing Panel has a beautiful appearance and bright color. It is widely used in garden, factory, resort, hotel, exhibition hall, vacationland,ancient architectures and modern villa. Customized is welcome. 2.Working process The complete  line includes decoiler, forming machine, comput...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    1.Description of Simple low rib wall color coated roofing sheet roll forming machine

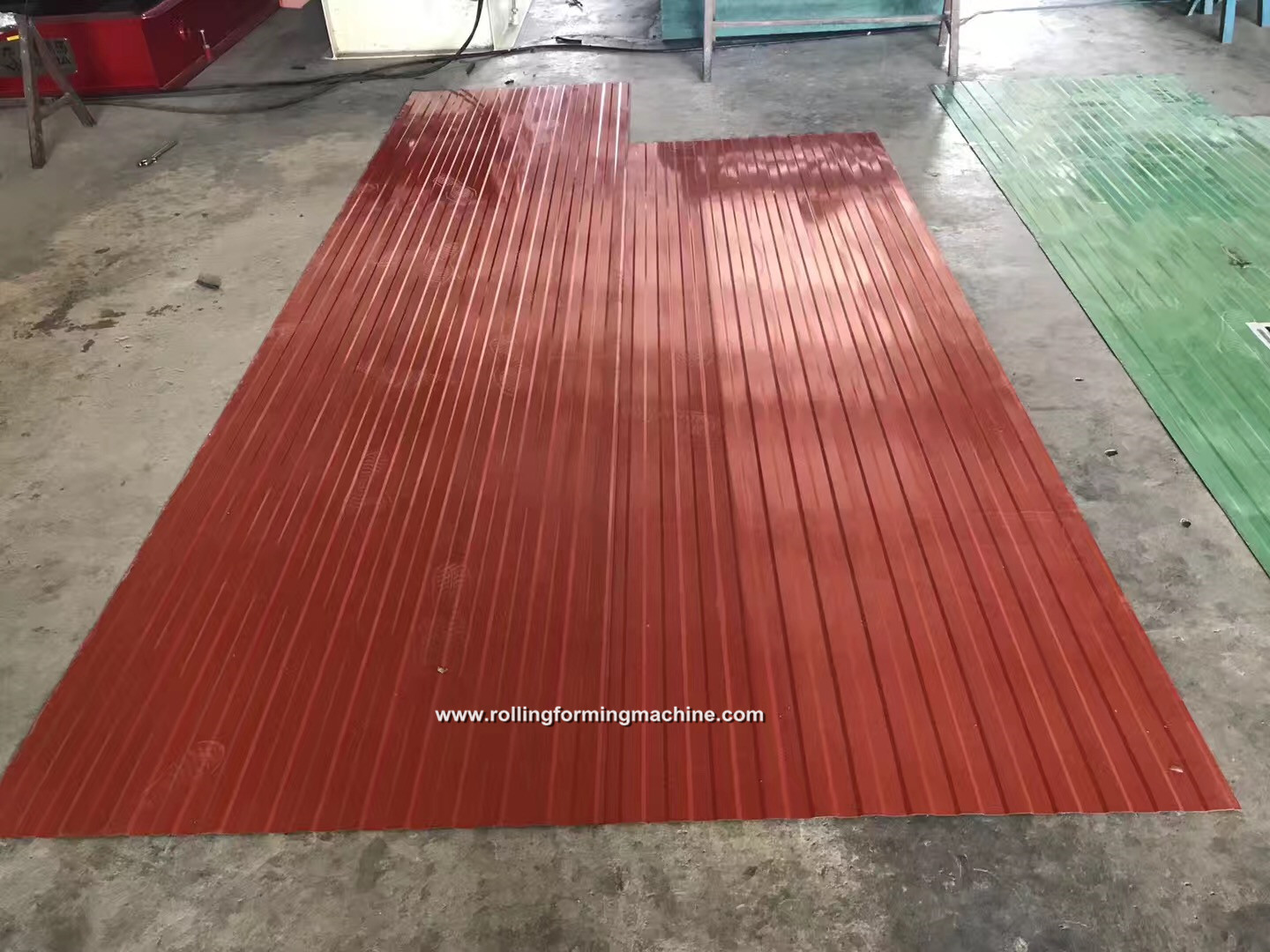

    This Cold steel roofing panel roll forming machine is designed by our professionals utilizing high grade component. Steel type Roofing Panel has a beautiful appearance and bright color. It is widely used in garden, factory, resort, hotel, exhibition hall, vacationland,ancient architectures and modern villa. Customized is welcome.

    2.Working process

    The complete  line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

    QQ截图20170329205629

    3.Diameter of Simple low rib wall color coated roofing sheet roll forming machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width 1250 mm
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 6 row
    Diameter of shaft 70mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 5.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English







  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
