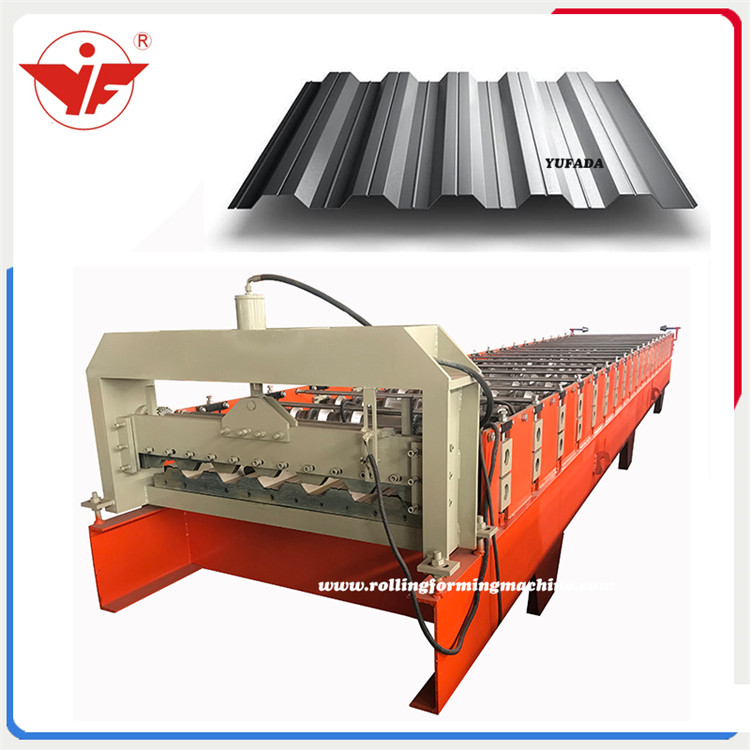

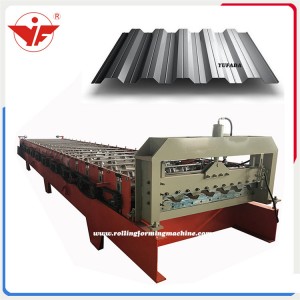

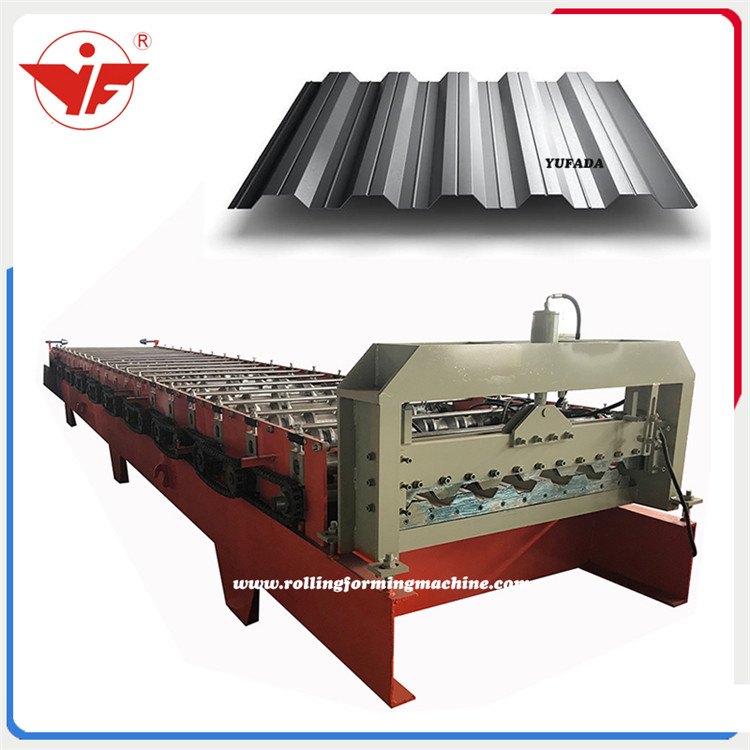

Russia used H35 roofing sheet roll forming machine

Short Description:

Description of  Russia used H35 roofing sheet roll forming machine      trapezoidal panel roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework. Working Process    The complete roll forming machine line includes decoiler, forming machine, computer controlling system...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of  Russia used H35 roofing sheet roll forming machine

         trapezoidal panel roll forming machine is used to construct a metal frame to provide support for plasterboard and gypsum panels. They are, however, highly technical profiles and must satisfy precise operating characteristics, complementing each other perfectly to form a high quality, robust framework.

    Working Process

       The complete roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep prodcts accurate.

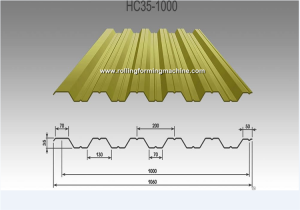

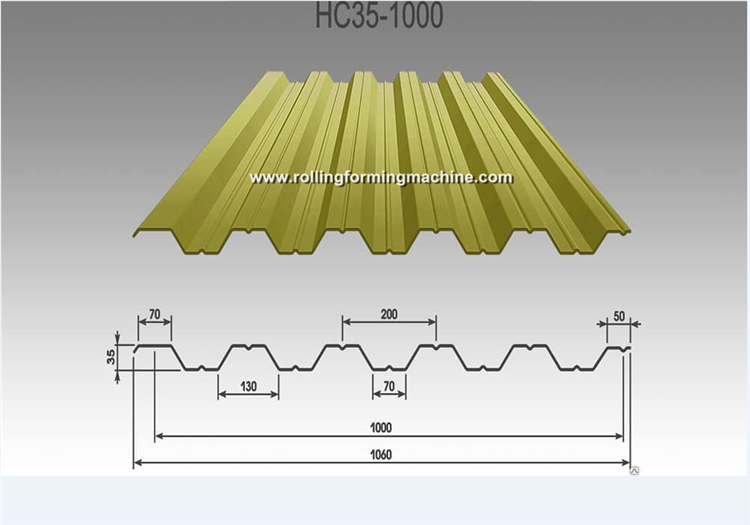

    QQ截图20170329205629

    Machine parameters of  Russia used H35 roofing sheet roll forming machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width  1250 mm
    Thickness 0.3-0.6 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 20 row
    Diameter of shaft 70 mm
    Shaft material 45# with 0.05mm chrome
    Roller material Cr 12 Mov steel
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 10-30 m/min

    4

    Power Driving way 1 inch chain
    Main motor 5.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English






  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
