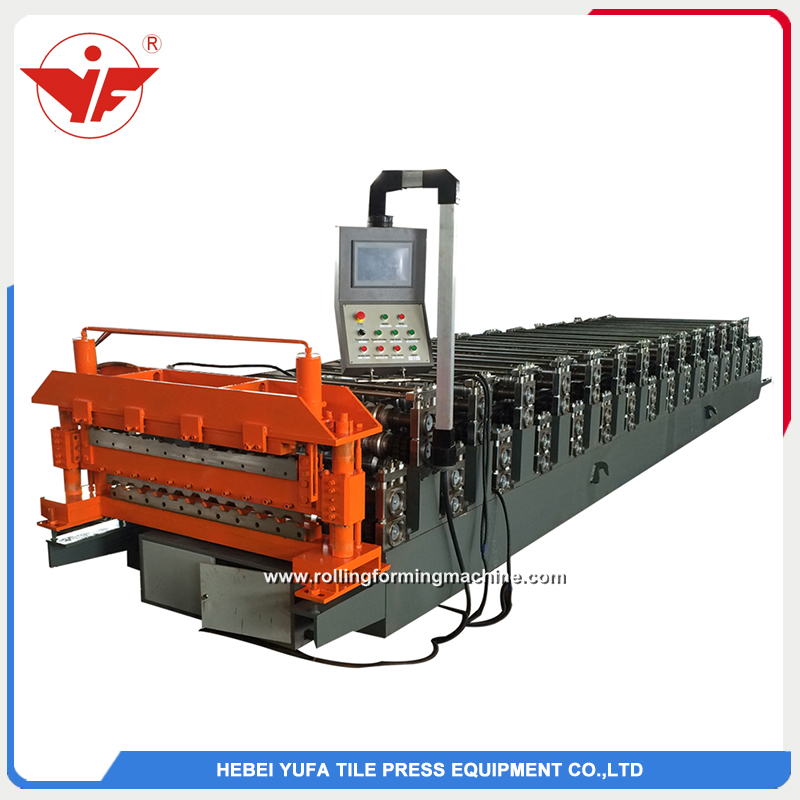

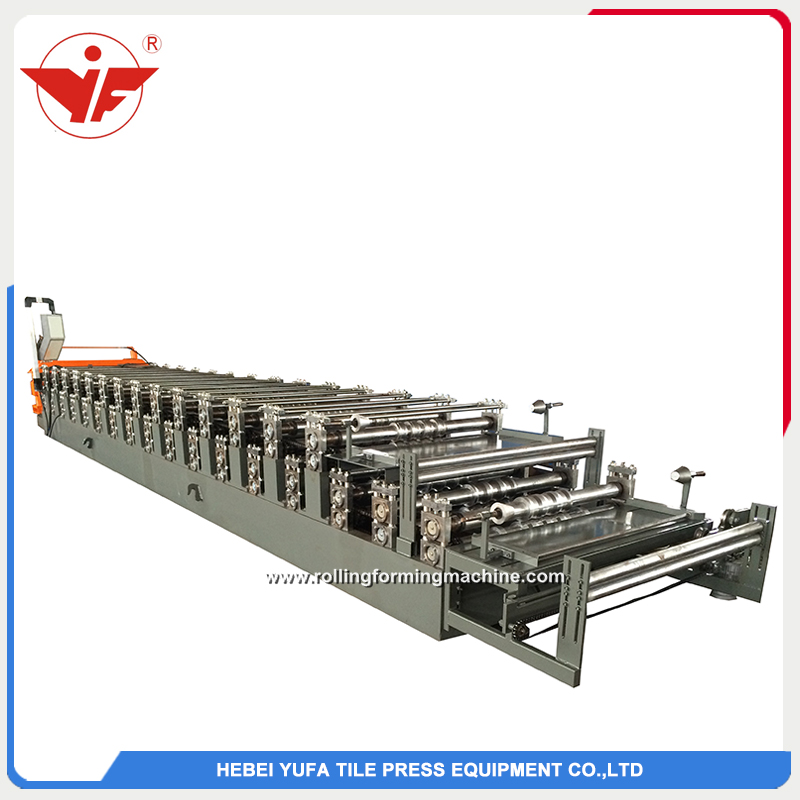

C8 and C21 double layer roll forming machine

Short Description:

1.Description of  C8 and C21 double layer roll forming machine To save space, some customer like double layer or three layer machine, sure it will also save some money for customer. Common compared with two single machine, double layer roll forming machine save one bottom frame, one control box, one motor (while motor need increase power than one single machine) Do you know that: Two layer of double layer machine can not work at same time, For example, up layer working, down layer can not wor...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    1.Description of  C8 and C21 double layer roll forming machine

    To save space, some customer like double layer or three layer machine, sure it will also save some money for customer.

    Common compared with two single machine, double layer roll forming machine save one bottom frame, one control box, one motor (while motor need increase power than one single machine)

    Do you know that: Two layer of double layer machine can not work at same time, For example, up layer working, down layer can not work, and if u want down layer work, up layer can not work.

    If down layer meet problem, u need take up layer roller station out, than fix the down layer problem, are u sure u can settle down it?

    As ur like and request to choose double layer machine or three layer machine or single layer machine.

    2.Working process

    The complete  line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

    QQ截图20170329205629

    3.Diameter of C8 and C21 double layer roll forming machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width 1250 mm
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 15/11 row
    Diameter of shaft 70 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm H-beam
    Frame thickness 20 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 7.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English



  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
