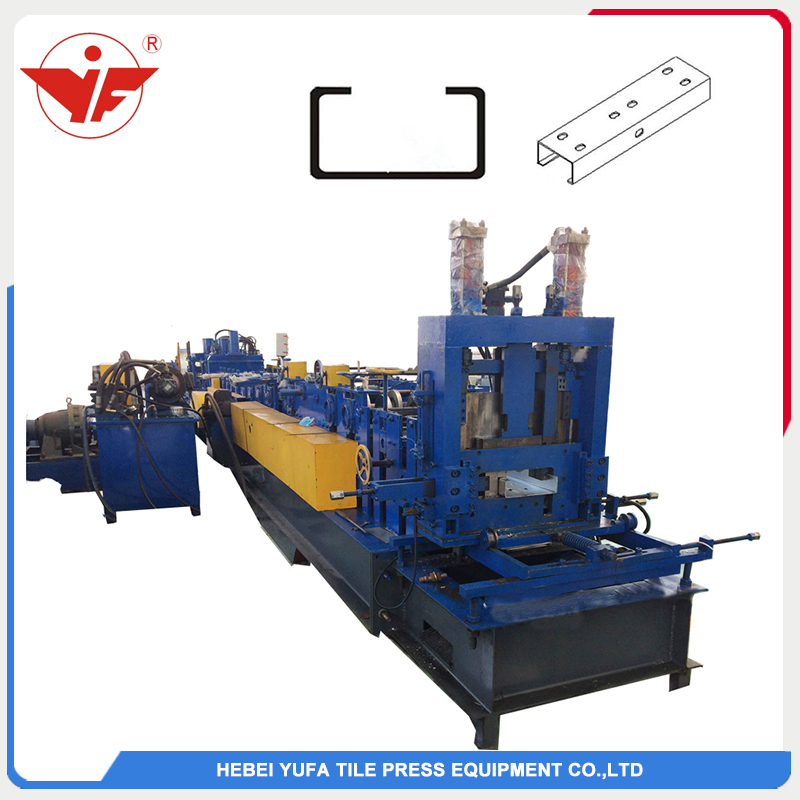

Automatic hydraulic cutting size interchangeable C purlin machine

Short Description:

Description of Automatic hydraulic cutting size interchangeable C purlin machine    Now our C purlin roll forming machine have been exported to many countries,the most important is that all you need can be customized. Working Process    The complete C purlin roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate. Machine parameters of Automatic hydrauli...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of Automatic hydraulic cutting size interchangeable C purlin machine

       Now our C purlin roll forming machine have been exported to many countries,the most important is that all you need can be customized.

    Working Process

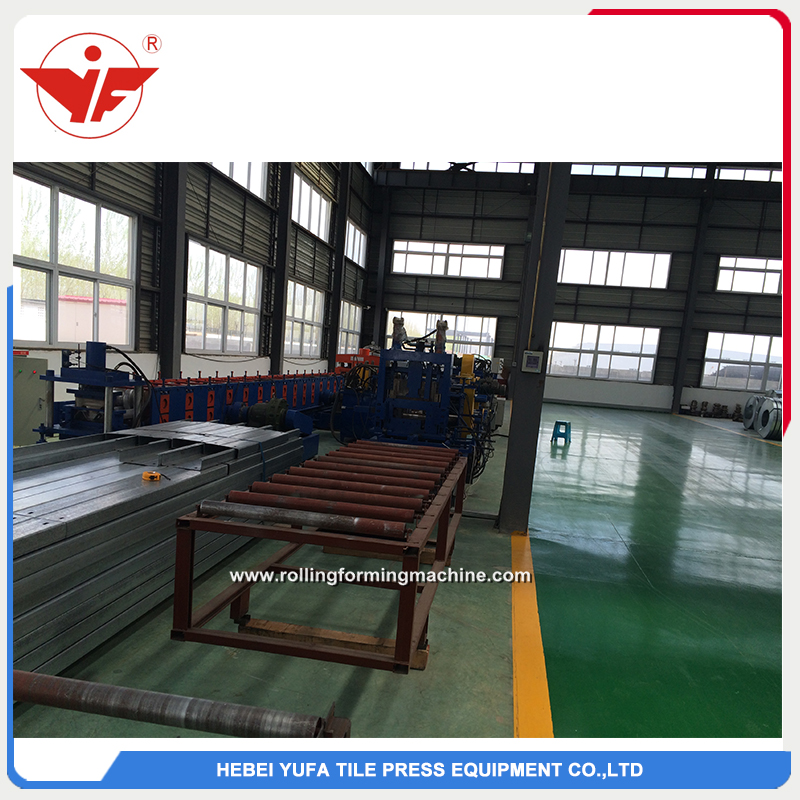

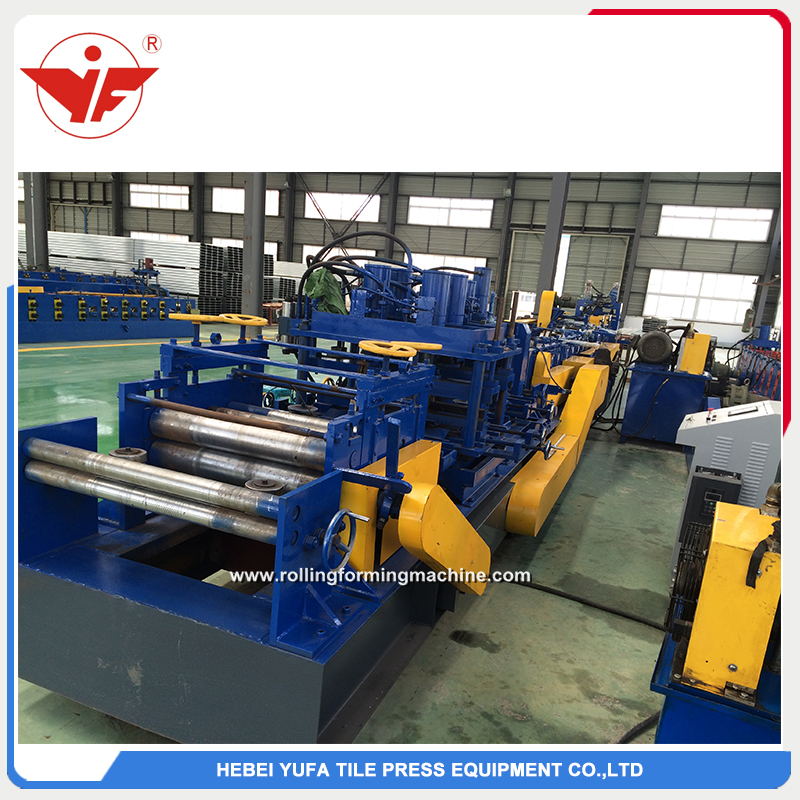

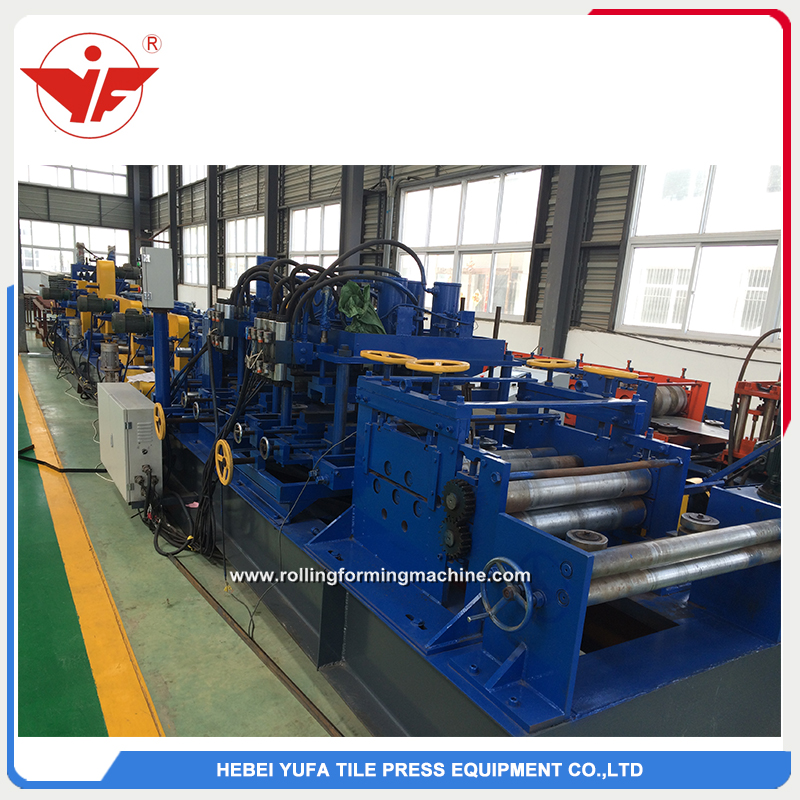

       The complete C purlin roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep purlin accurate. QQ截图20170329205629

    Machine parameters of Automatic hydraulic cutting size interchangeable C purlin machine

    NO

                Type

    Specification

    1

    Raw material Type GI
    Thickness max 4 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 15 row
    Diameter of shaft 90mm
    Shaft material 45# with 0.05mm chrome
    Roller material Bearing steel
    Type Chinese type
    Frame 400mm H-beam
    Frame thickness 25 mm
    Material Cr 12

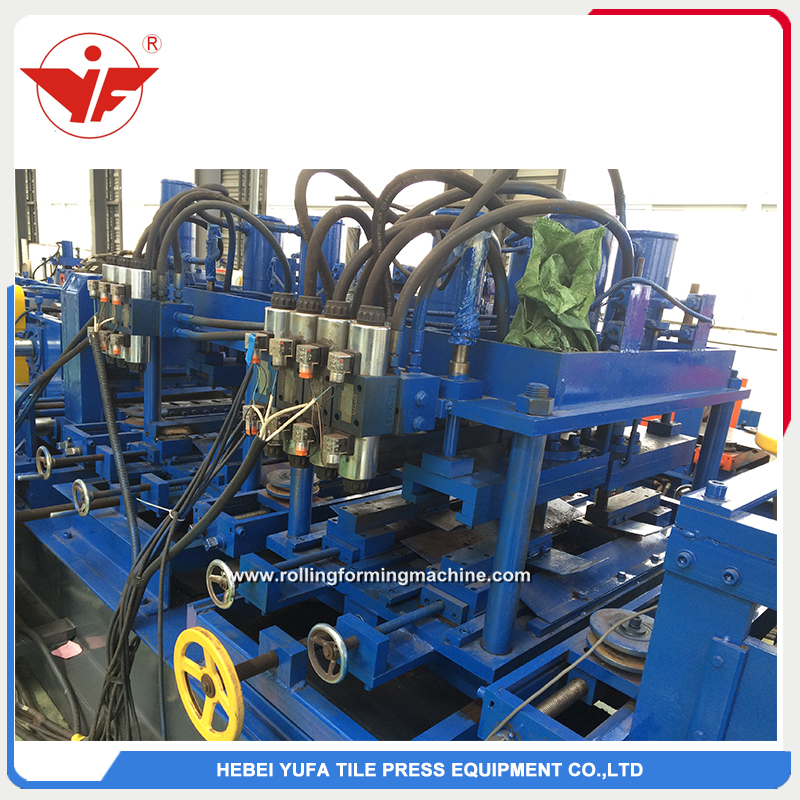

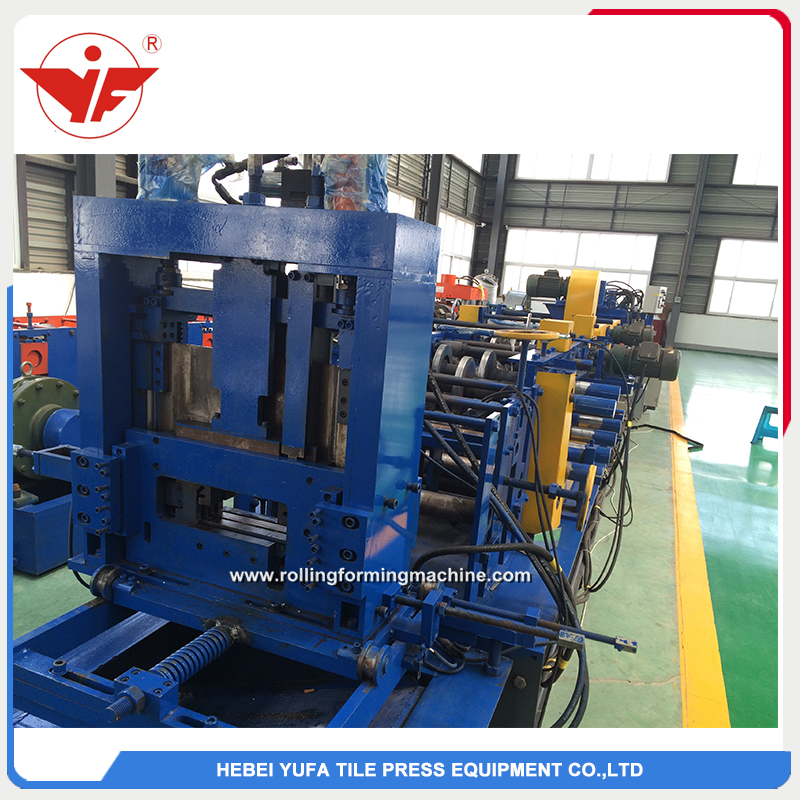

    Operation Hydraulic automatic
    Working speed 20-30 m/min

    4

    Power Driving way 1.5 inch double chain
    Main motor 22 KW
    Voltage 380V/50HZ, 3 phase

    5

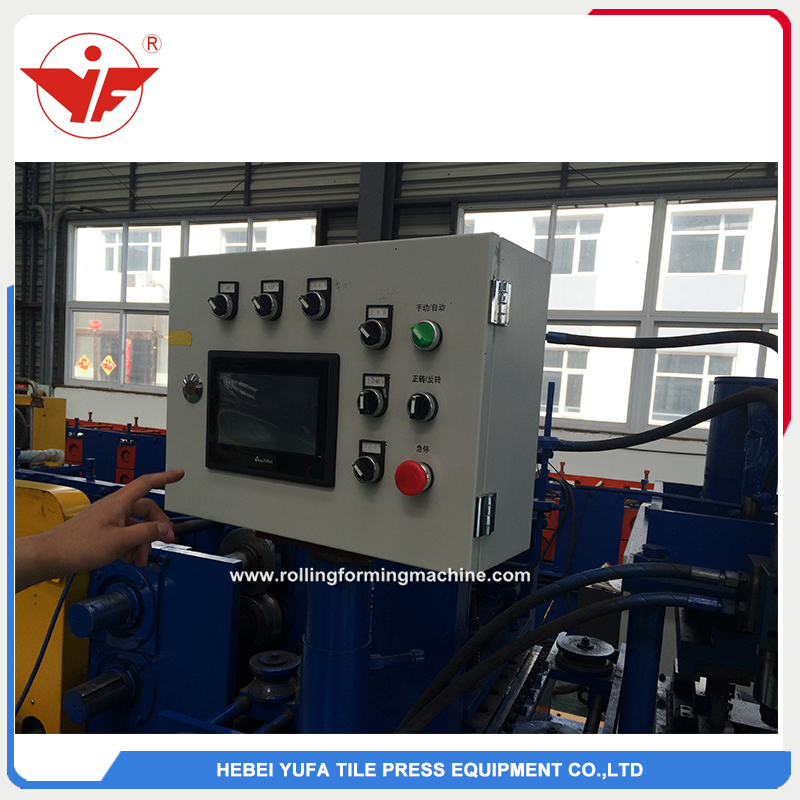

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English








  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
