Austria shutter door roll forming machine

Short Description:

Product description  Austria shutter door roll forming machine is customized by YUFA company. We design and produce many kinds of roll shutter door roll forming machine for many clients. We understand shutter door very well. And we also know the shutter door roll forming machine market very well. When we get the sample of shutter door panel, we can get price timely. Different drawings different prices. Yes, it is right. And do you know what is important for shutter door. It is thickness. When...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Product description

    Austria shutter door roll forming machine is customized by YUFA company. We design and produce many kinds of roll shutter door roll forming machine for many clients. We understand shutter door very well. And we also know the shutter door roll forming machine market very well. When we get the sample of shutter door panel, we can get price timely.

    Different drawings different prices. Yes, it is right. And do you know what is important for shutter door. It is thickness. When clients ask the price, they always think that your price is higher. But why not you tell us your using thickness. 1.0mm price is much cheaper than 1.2mm. Do you know that? Business should be honest, then we can help you to buy high quality shutter door roll forming machine with acceptable price.

    Working process

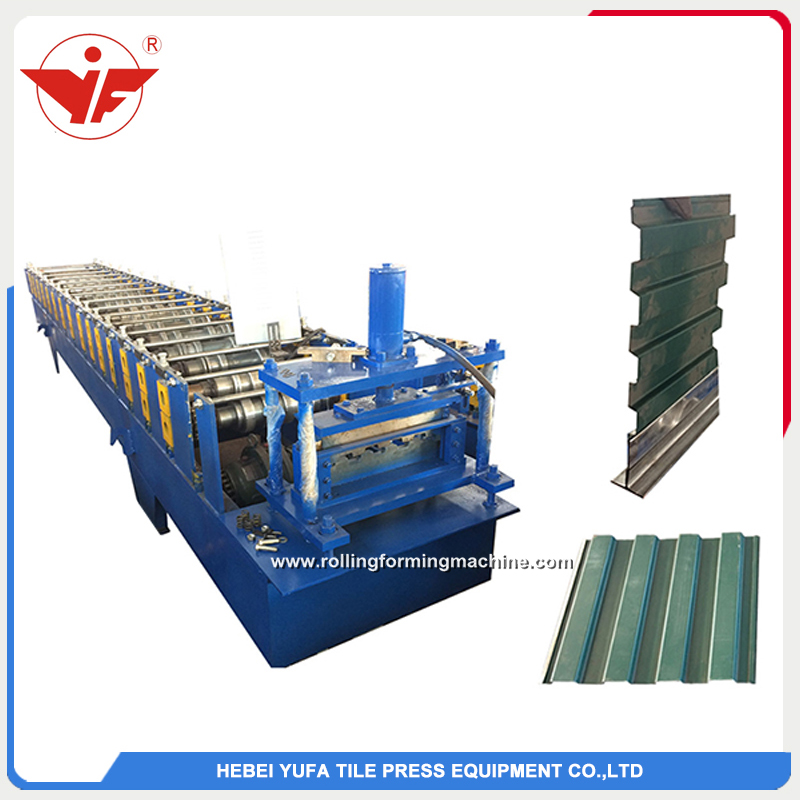

    Shutter door roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic  cutter and receiving table. Automatic working and controled by Delta PLC control system, we also have Mitsibishi  PLC for option.

    QQ截图20170329205629

    Machine Parameters

    NO

                Type

     Specification

    1

    Raw material Type PPGI
    Feeding width As customer need
    Thickness 0.4-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 15 row
    Diameter of shaft 70 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45#  with 0.05mm chrome
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-15 m/min

    4

    Power Driving way Chain 1 inch
    Main motor  5.5 KW
    Voltage  380V/50HZ, 3 phase

    5

    Control box Electric box  PLC control system
    PLC brand  Delta made in Taiwan
    Inverter brand  Delta made in Taiwan
    Language  Chinese and English






  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
