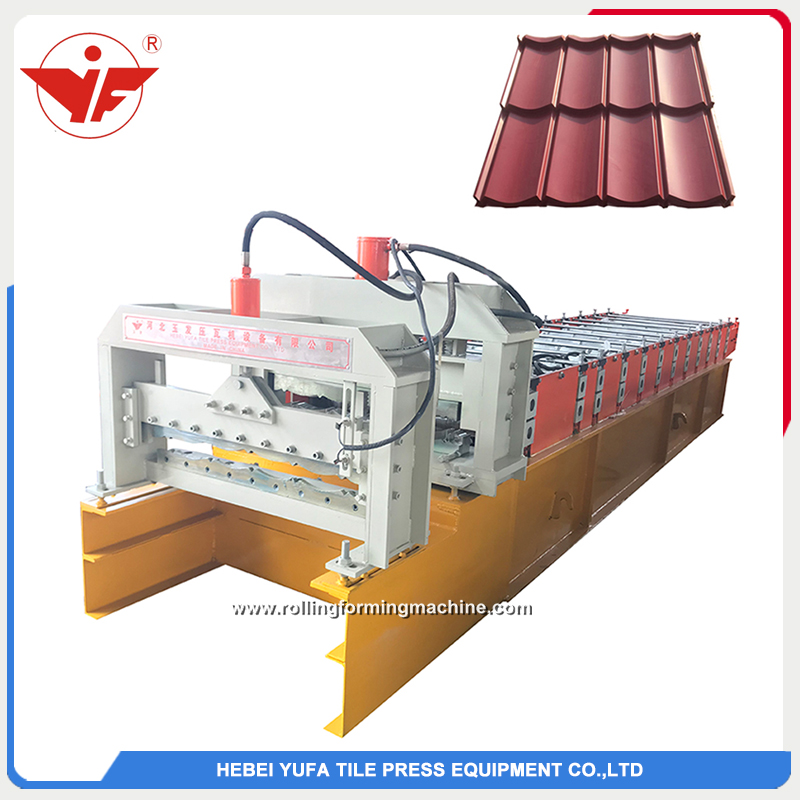

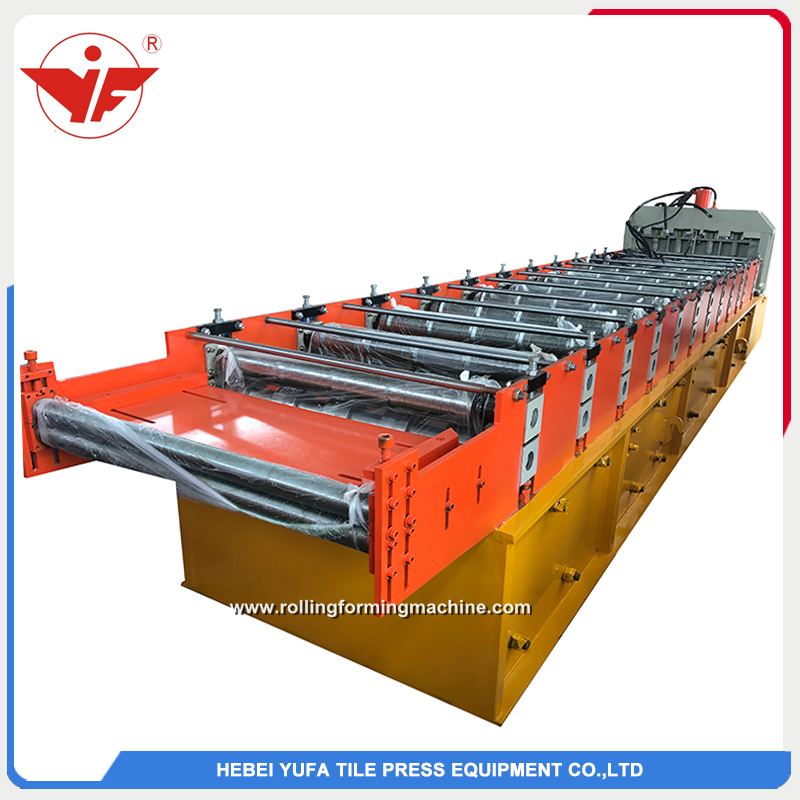

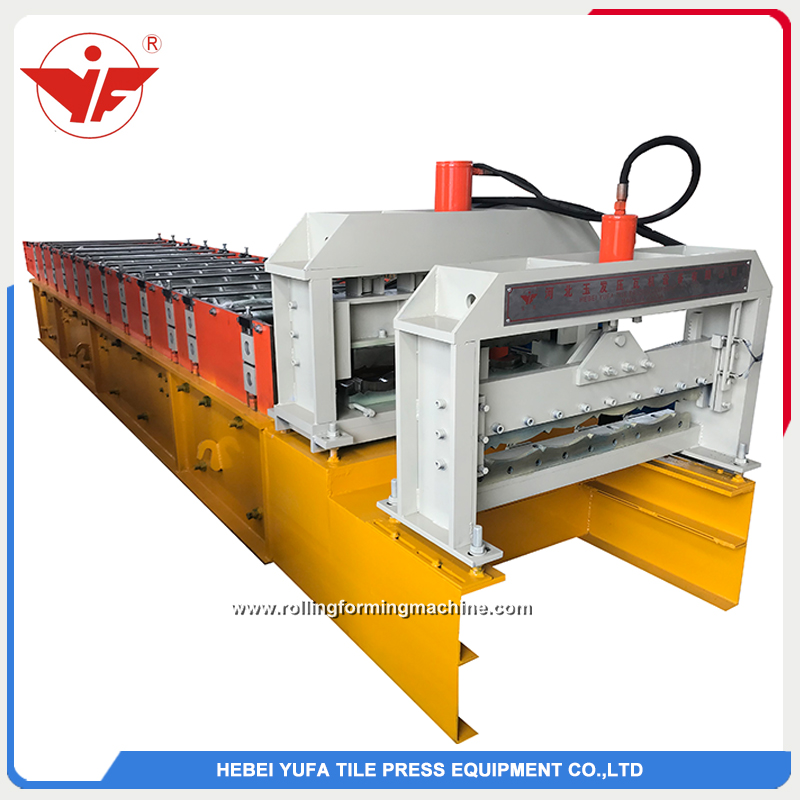

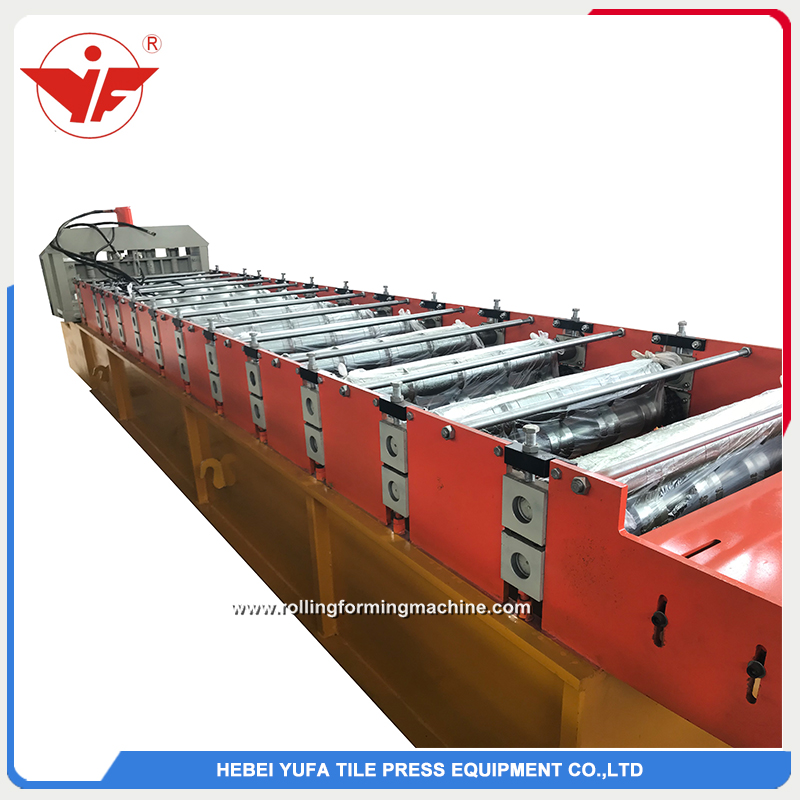

Indonesia hot sell 800 step tile roofing panel machine

Short Description:

Description of Indonesia hot sell 800 step tile roofing panel machine    Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance . Working Process    The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer con...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of Indonesia hot sell 800 step tile roofing panel machine

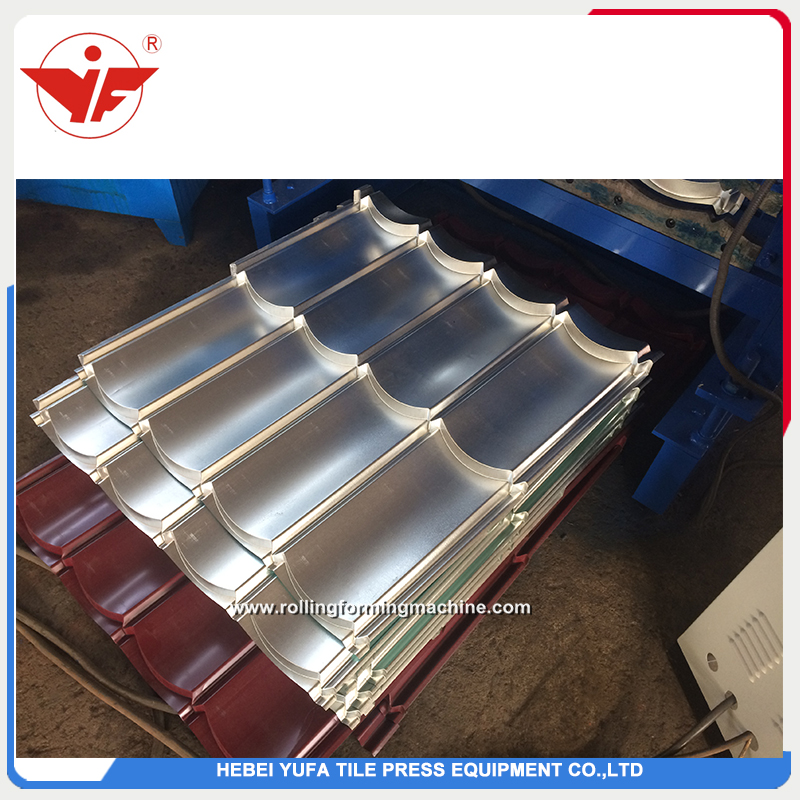

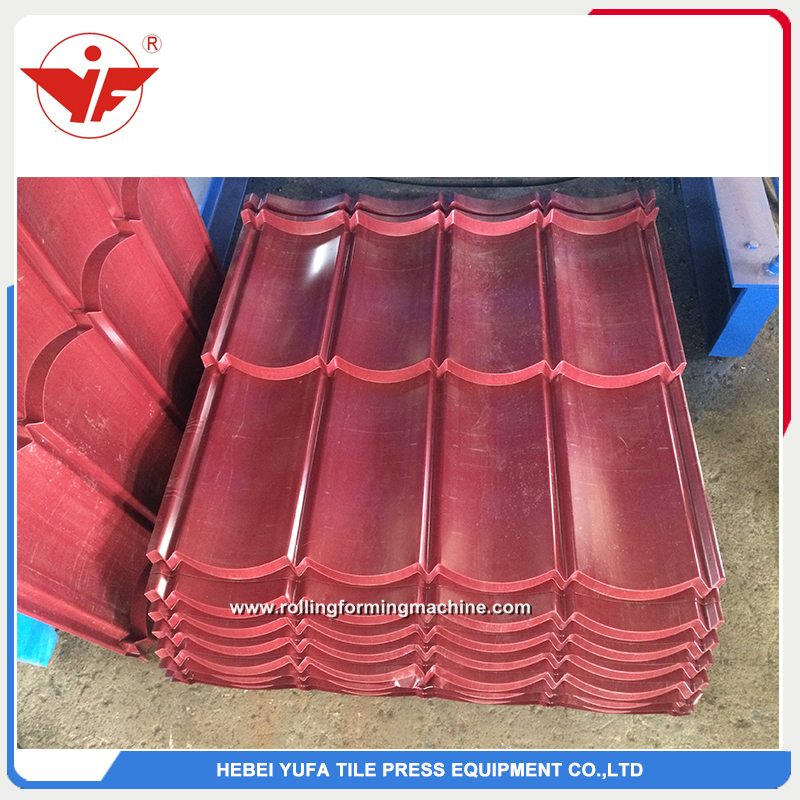

       Different roll forming machine can produce different shapes of glazed roof tiles in various thickness and colors.They are popular because of their low cost, short building period, re-cycle use, and elegant appearance .

    Working Process

       The complete glazed roof tiles roll forming machine line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep the glazed roof tiles accurate.

    QQ截图20170329205629

    Machine parameters of Indonesia hot sell 800 step tile roofing panel machine

    NO

                Type

     Specification

    1

    Raw material Type PPGI
    Feeding width 914 mm
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 11 row
    Diameter of shaft 75 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm H-beam
    Frame thickness 20 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 5.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English







  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
