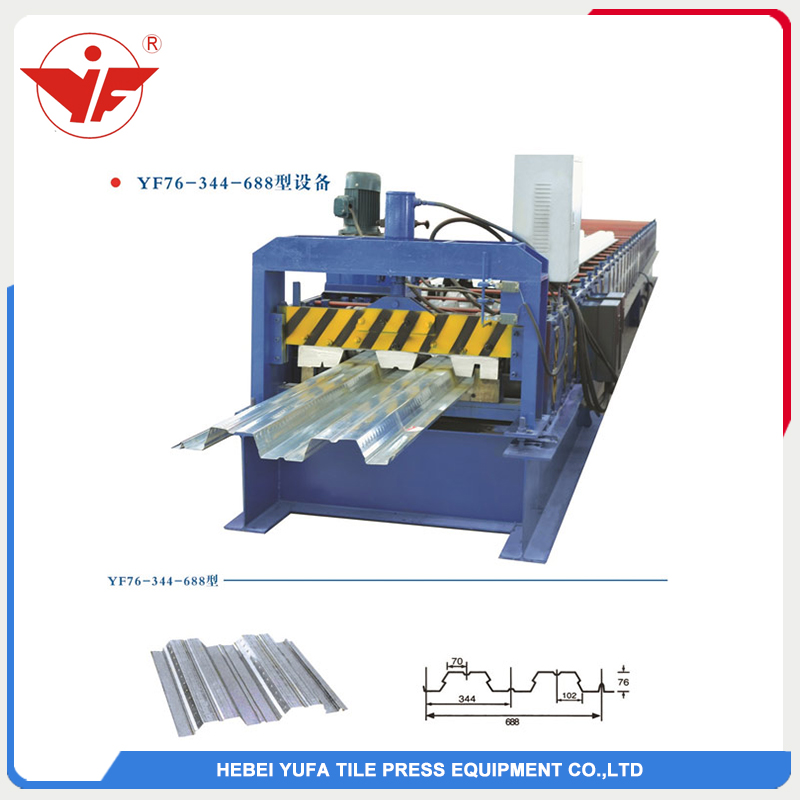

688 floor deck roll forming machine

Short Description:

We are floor deck roll forming machine manufacturer Our company is professional in floor deck field. With best quality and cheapest price wait for u. We have many kinds of floor deck. YF51-342-1025/ YF75-230-690/ YF75-200-600/ YF76-344-688/ YF75-293-880/ YF75-230-690 YF65-185-555/ YF51-200-600/ YF51-226-678/ YF51-253-760/ YF51-250-750/ YF51-240-720 YF51-305-914/ YF50-180-720/ YF35-125-750/ YF51-330-992 And we also have steel truss floor decking machine. weld rebar on the floor deck. We can de...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    We are floor deck roll forming machine manufacturer

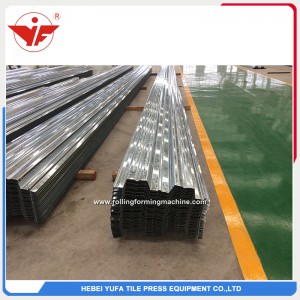

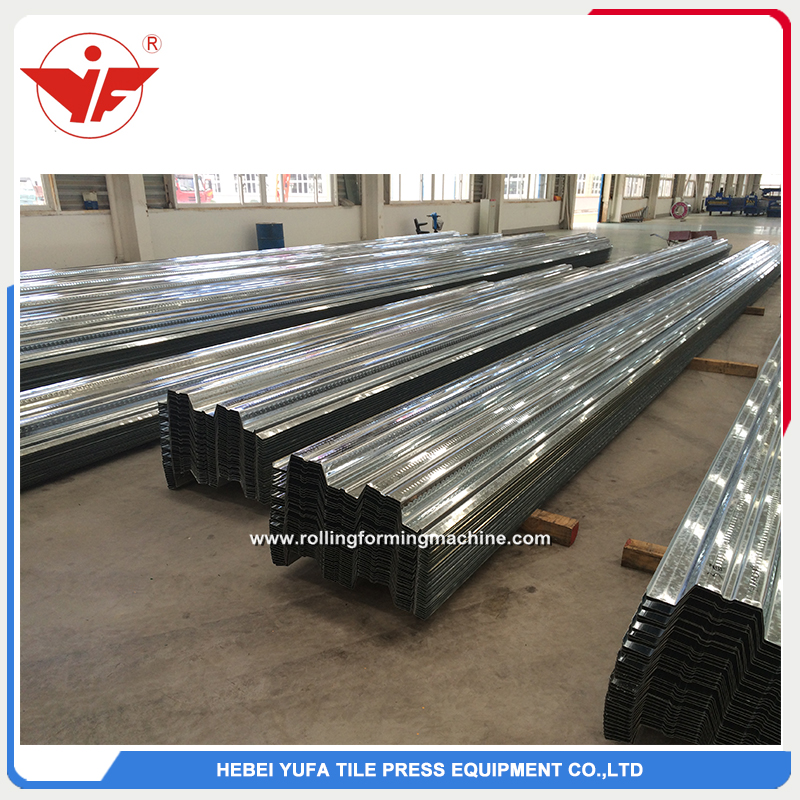

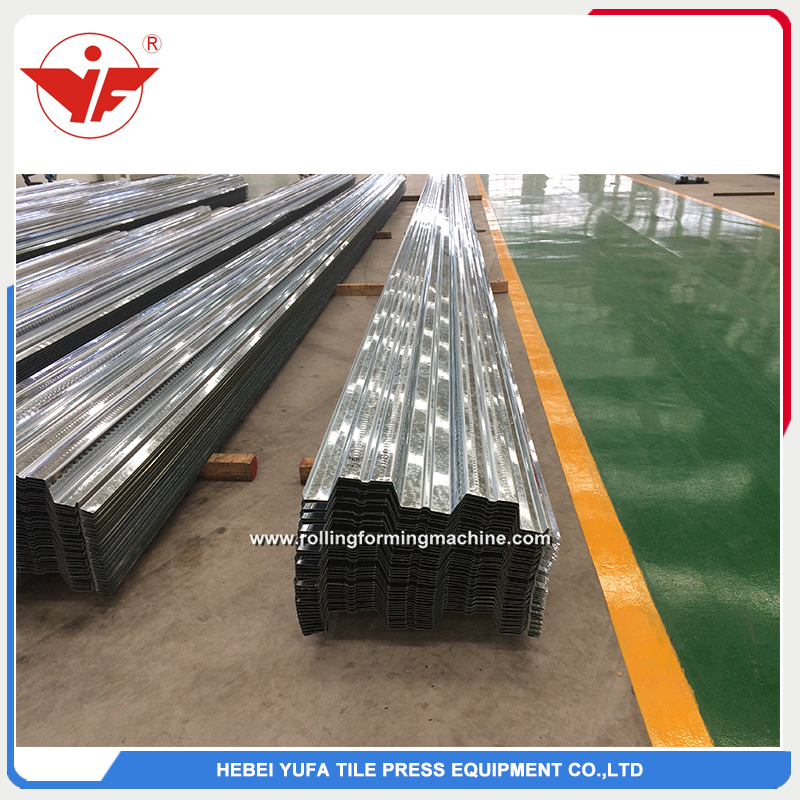

    Our company is professional in floor deck field. With best quality and cheapest price wait for u. We have many kinds of floor deck. YF51-342-1025/ YF75-230-690/ YF75-200-600/ YF76-344-688/ YF75-293-880/ YF75-230-690 YF65-185-555/ YF51-200-600/ YF51-226-678/ YF51-253-760/ YF51-250-750/ YF51-240-720 YF51-305-914/ YF50-180-720/ YF35-125-750/ YF51-330-992 And we also have steel truss floor decking machine. weld rebar on the floor deck. We can design floor deck for you if you have drawing or idea.

    Working flow of floor deck roll forming machine

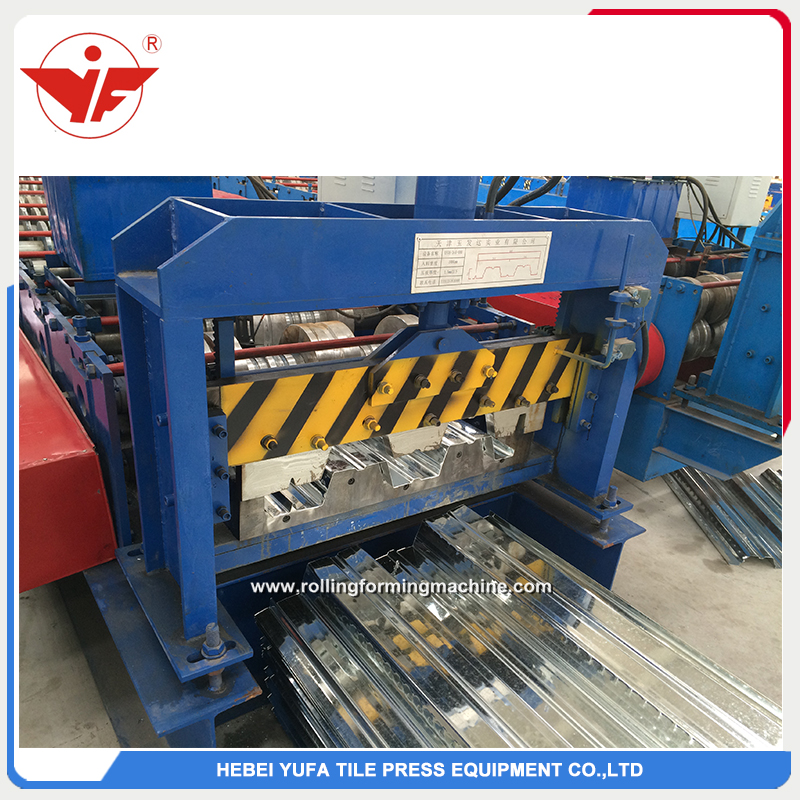

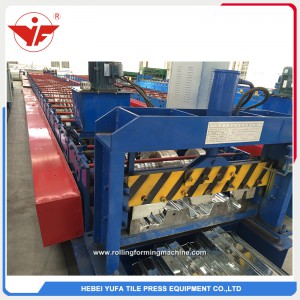

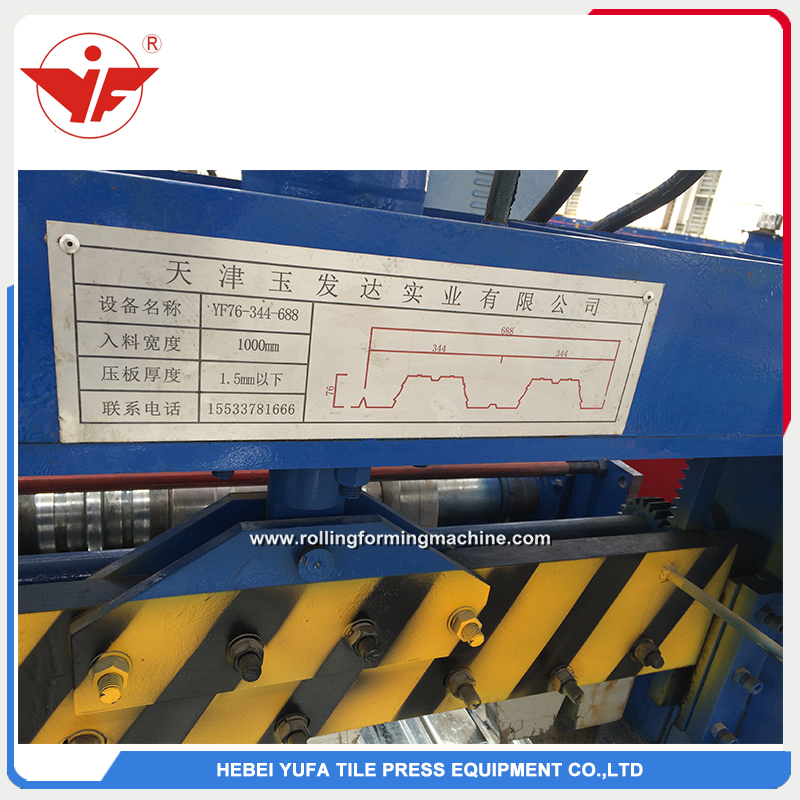

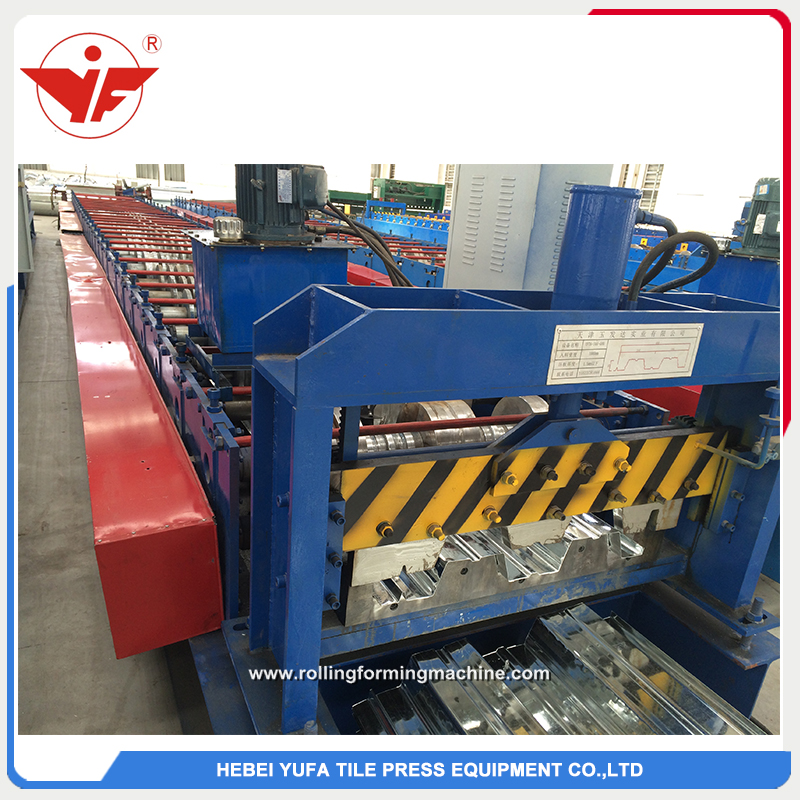

    Floor deck roll forming machine  include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi  PLC for option.

    QQ截图20170329205629

    Floor deck roll forming machine Parameters



    NO

                Type

    Specification

    1

    Raw material Type GI
    Feeding width As customer need
    Thickness 0.8-2 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 24 row
    Diameter of shaft 75 mm
    Shaft material 45# with 0.05mm chrome
    Roller material GCR15
    Type Chinese type
    Frame 400mm H-beam
    Frame thickness 20 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-15 m/min

    4

    Power Driving way Chain 2 inch
    Main motor 11 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English







  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
