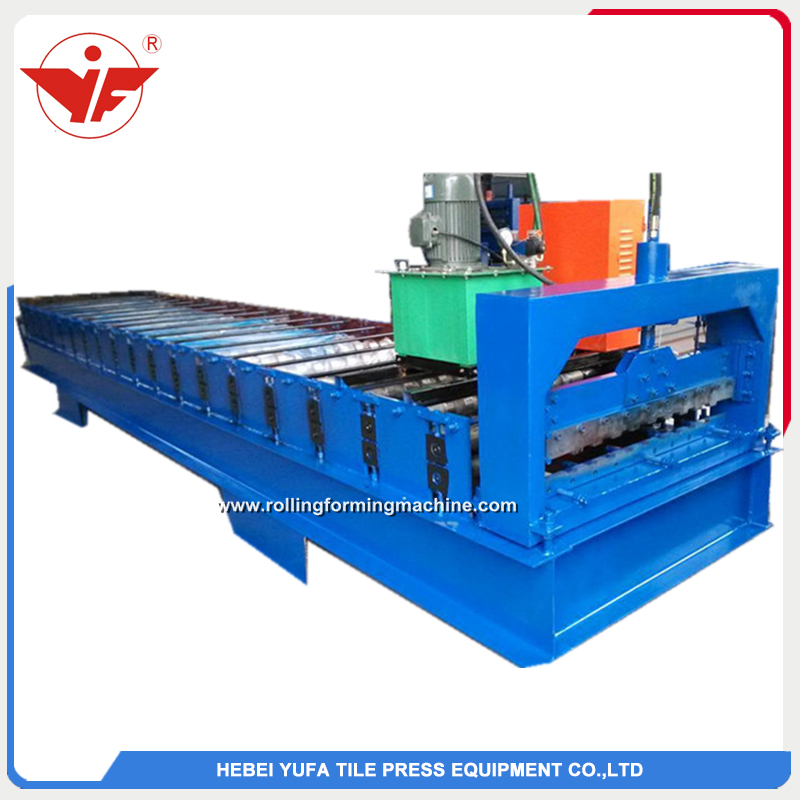

1000mm Austria shutter door forming machine

Short Description:

Description of 1000mm Austria shutter door forming machine Roll forming machines and lines for  aluminium rolling shutter blinds are one of the main specializations for YUFA. When we study a rolling shutter profile, we rely on precisely defined design parameters (exclusive to YUFA), which ensure optimum closing and winding, silent operation, blackout and extreme rigidity: results of the continual winding and unwinding tests show that the life expectancy of profiles made with YUFA machines is ...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of 1000mm Austria shutter door forming machine

    Roll forming machines and lines for  aluminium rolling shutter blinds are one of the main specializations for YUFA.
    When we study a rolling shutter profile, we rely on precisely defined design parameters (exclusive to YUFA), which ensure optimum closing and winding, silent operation, blackout and extreme rigidity: results of the continual winding and unwinding tests show that the life expectancy of profiles made with YUFA machines is twice that of profiles with similar characteristics made with other types of machines.

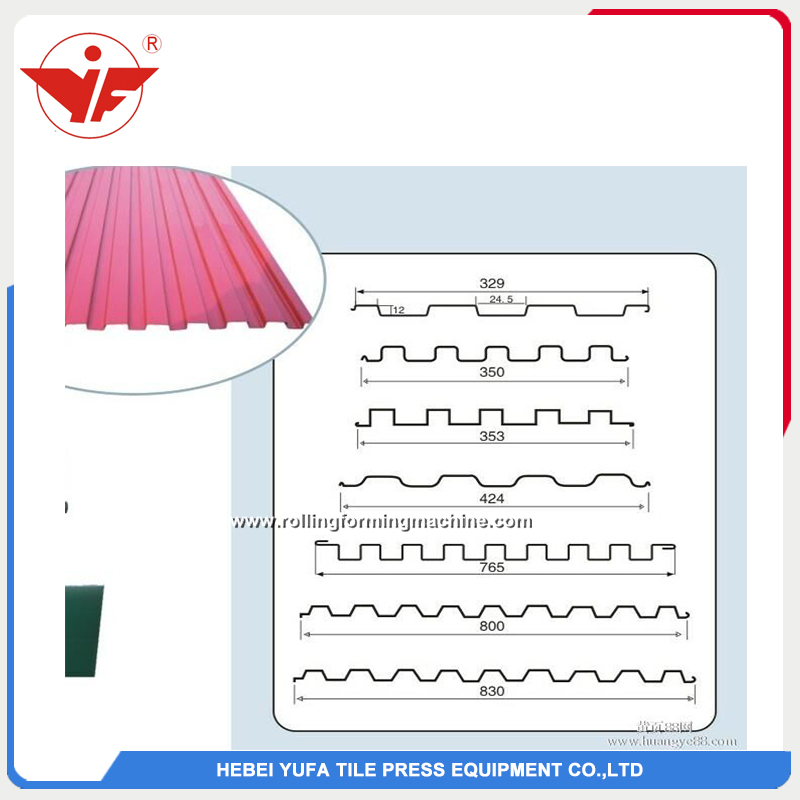

    Product drawing

                              QQ图片20160225082202

    2.Working process

    The complete  line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

    QQ截图20170329205629

    3.Diameter of 1000mm Austria shutter door forming machine

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width 1250 mm
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 20 row
    Diameter of shaft 75 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm H-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 7.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English












  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
