good quality color coated roofing water gutter making machine china

Short Description:

Metal water gutter roll forming machine Metal water gutter roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi  PLC for option. Metal water gutter roll forming machine Parameters NO             Type Specification 1 Raw material Type GI Feeding width 400 mm Thickness 1.5 mm 2 Decoiler Operation Manual Weight apacity 5...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

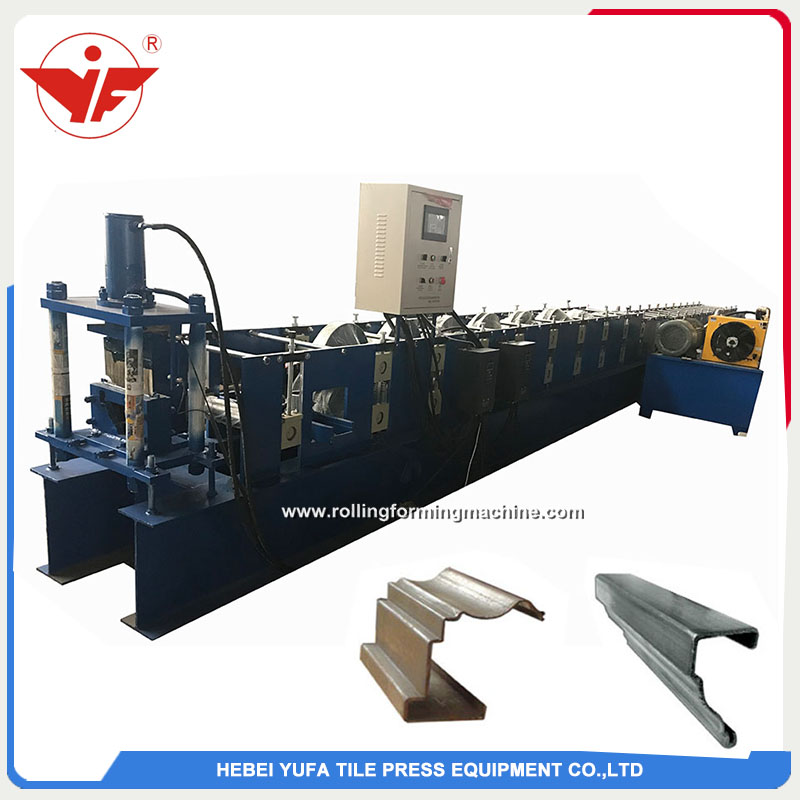

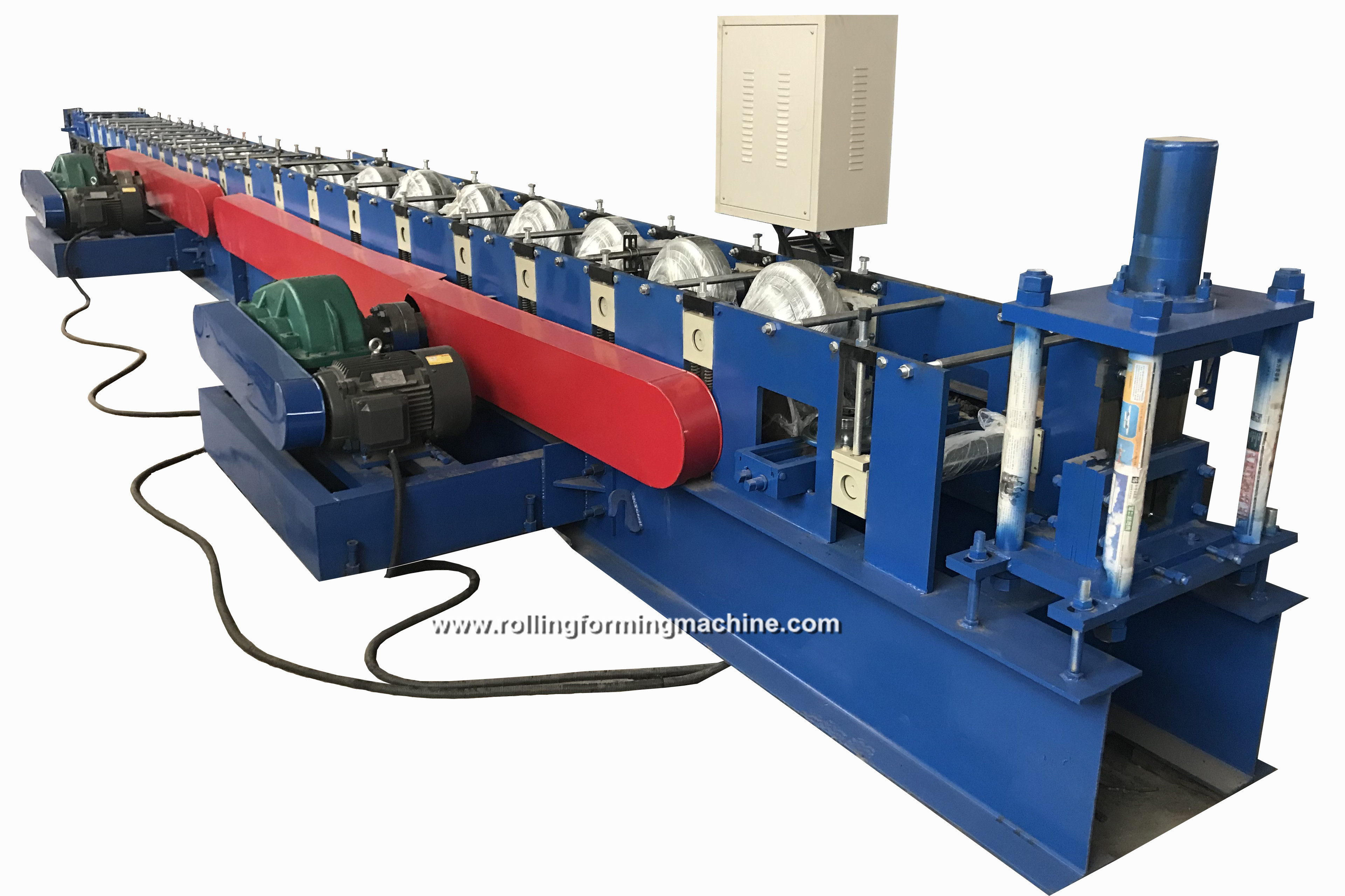

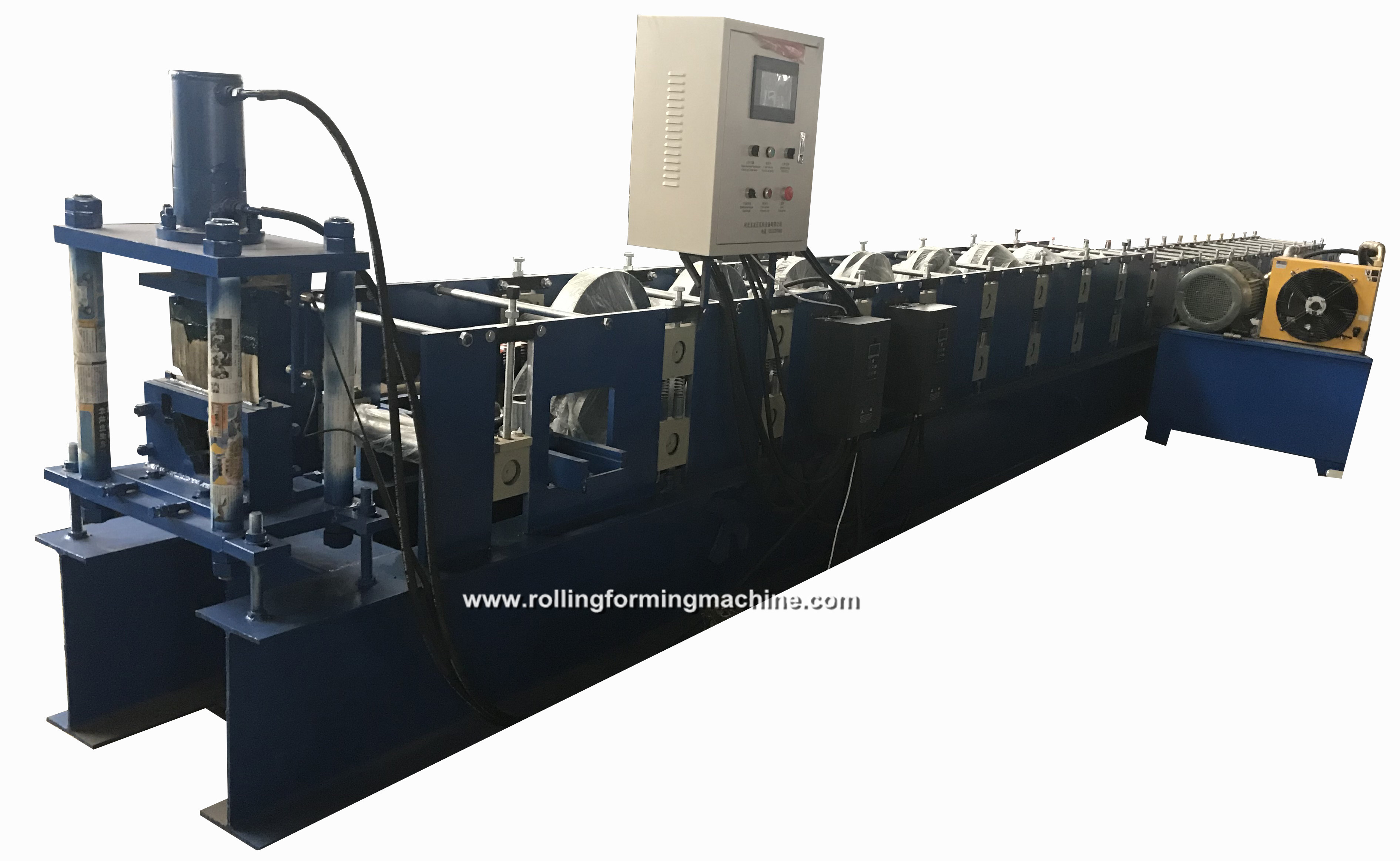

    Metal water gutter roll forming machine

    Metal water gutter roll forming machine include one set 5 ton manual decoiler, feeding table, roll forming machine , hydraulic cutter and receiving table.Machine is controled by Delta PLC control system, we also have Mitsibishi  PLC for option.

    QQ截图20170329205629

    Metal water gutter roll forming machine Parameters

    NO

                Type

    Specification

    1

    Raw material Type GI
    Feeding width 400 mm
    Thickness 1.5 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

    Main body Roller station 20 row
    Diameter of shaft 75 mm
    Shaft material 45#
    Roller material 45#
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 20 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-15 m/min

    4

    Power Driving way Chain 1.5 inch
    Main motor 11 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English




  • Previous:
  • Next:
  • 1 Q: Are you a manufacturer?
        A:Yes, we are manufacture with four branches factory

    2. Q: How to order my machine
         A: Send me your design drawing if you have.
    Or tell me your design idea. Our engineer will design it as your needs.

    3. Q: What details of the machine you should get from me.
         A: I will confirm all details with you, such as the voltage in your city.

    4. Q: I am new in this field. How could i understand the machine very well
         A: Contact with us,24 hours online service side.

    5. Q: I receive a lot of quotations, they are big difference, How could i choose?
         A:we have many easy ways to solve it. Fox example, we can teach you how to find the   Traders out. Just contact us.

    6.Q: Can you give me one suggestion for ordering the machine.
       A: No problem. Do not trust your eyes when you see beautiful pictures of machines or factories. More when you contact.

    7. Q: Can you use other brand of spare parts for me if i want.
         A: No problem if you want to pay the money.
