60 Pu sandwich shutter door forming line sell to Pakistan

Short Description:

Description of Pu sandwich shutter door forming line Roll forming machines and lines for  aluminium rolling shutter blinds are one of the main specializations for YUFA. When we study a rolling shutter profile, we rely on precisely defined design parameters (exclusive to YUFA), which ensure optimum closing and winding, silent operation, blackout and extreme rigidity: results of the continual winding and unwinding tests show that the life expectancy of profiles made with YUFA machines is twice ...


  • Raw material: PPGI&GI&ALZN
  • Control system: PLC Control system
  • Port: Tianjin/Shanghai/Beijing
  • Payment Terms: L/C,D/A,D/P,T/T
  • Product Detail

    FAQ

    Product Tags

    Description of Pu sandwich shutter door forming line

    Roll forming machines and lines for  aluminium rolling shutter blinds are one of the main specializations for YUFA. When we study a rolling shutter profile, we rely on precisely defined design parameters (exclusive to YUFA), which ensure optimum closing and winding, silent operation, blackout and extreme rigidity: results of the continual winding and unwinding tests show that the life expectancy of profiles made with YUFA machines is twice that of profiles with similar characteristics made with other types of machines.

    Product drawing

    QQ截图20180709163216

    Working process

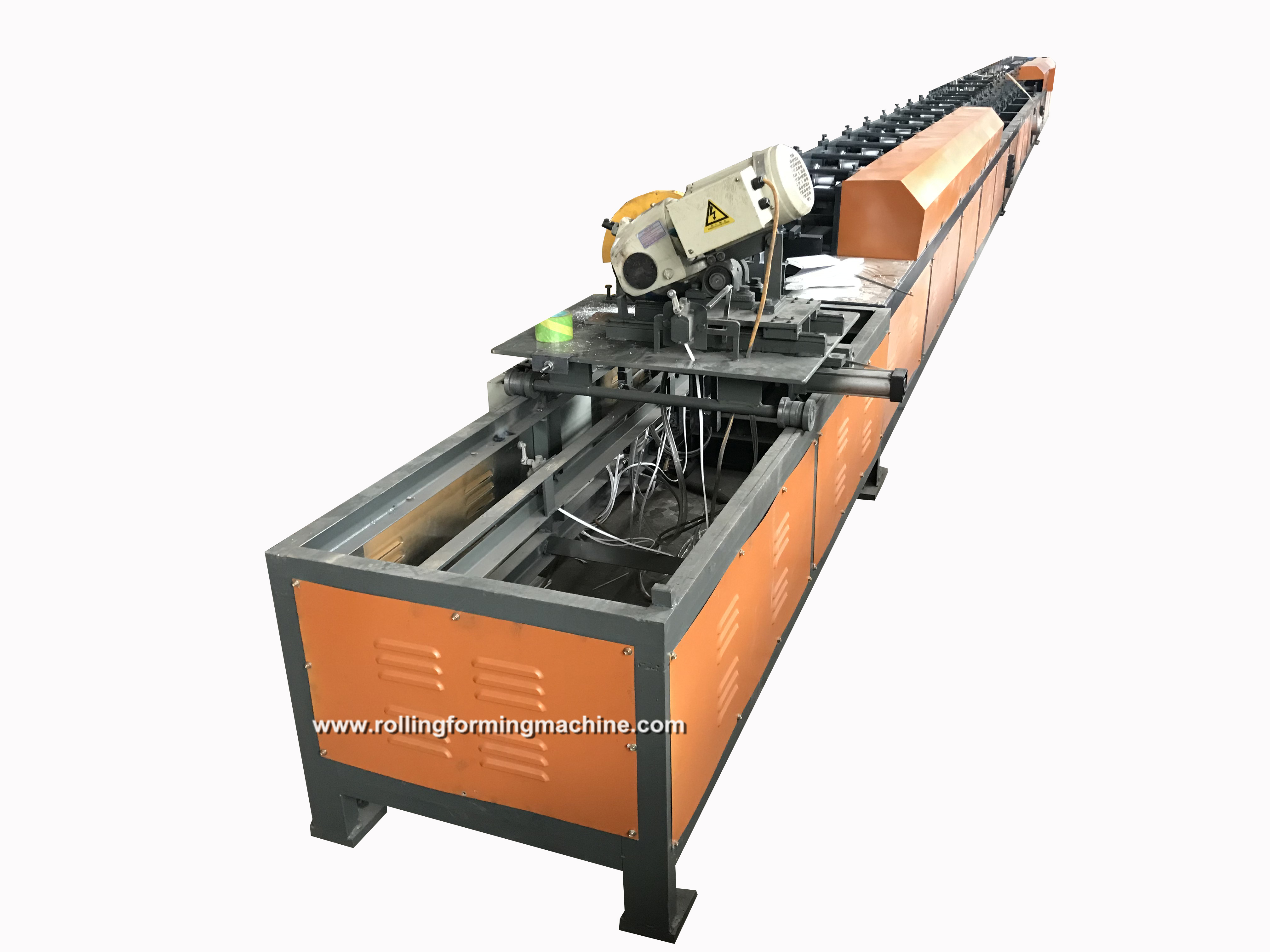

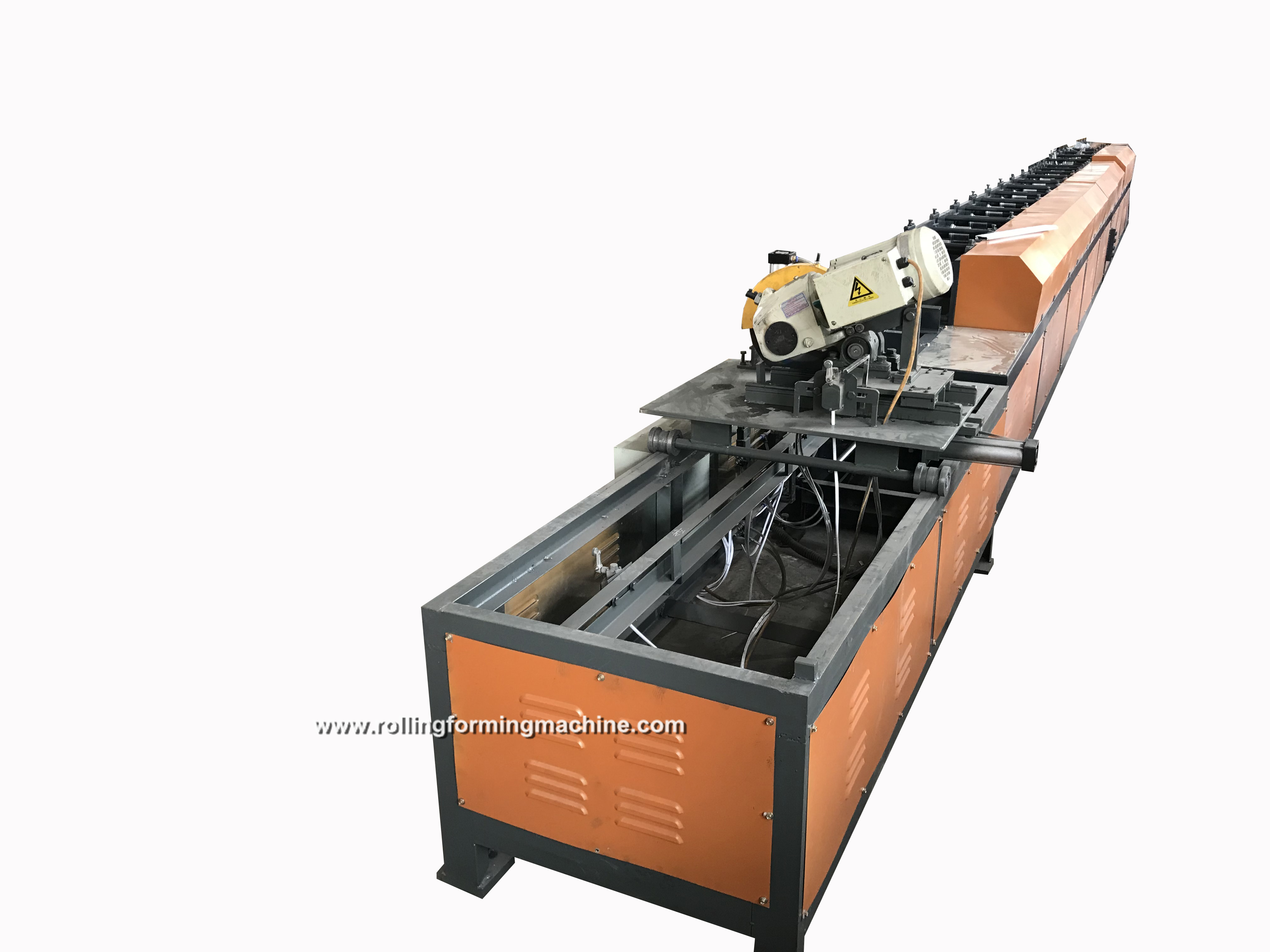

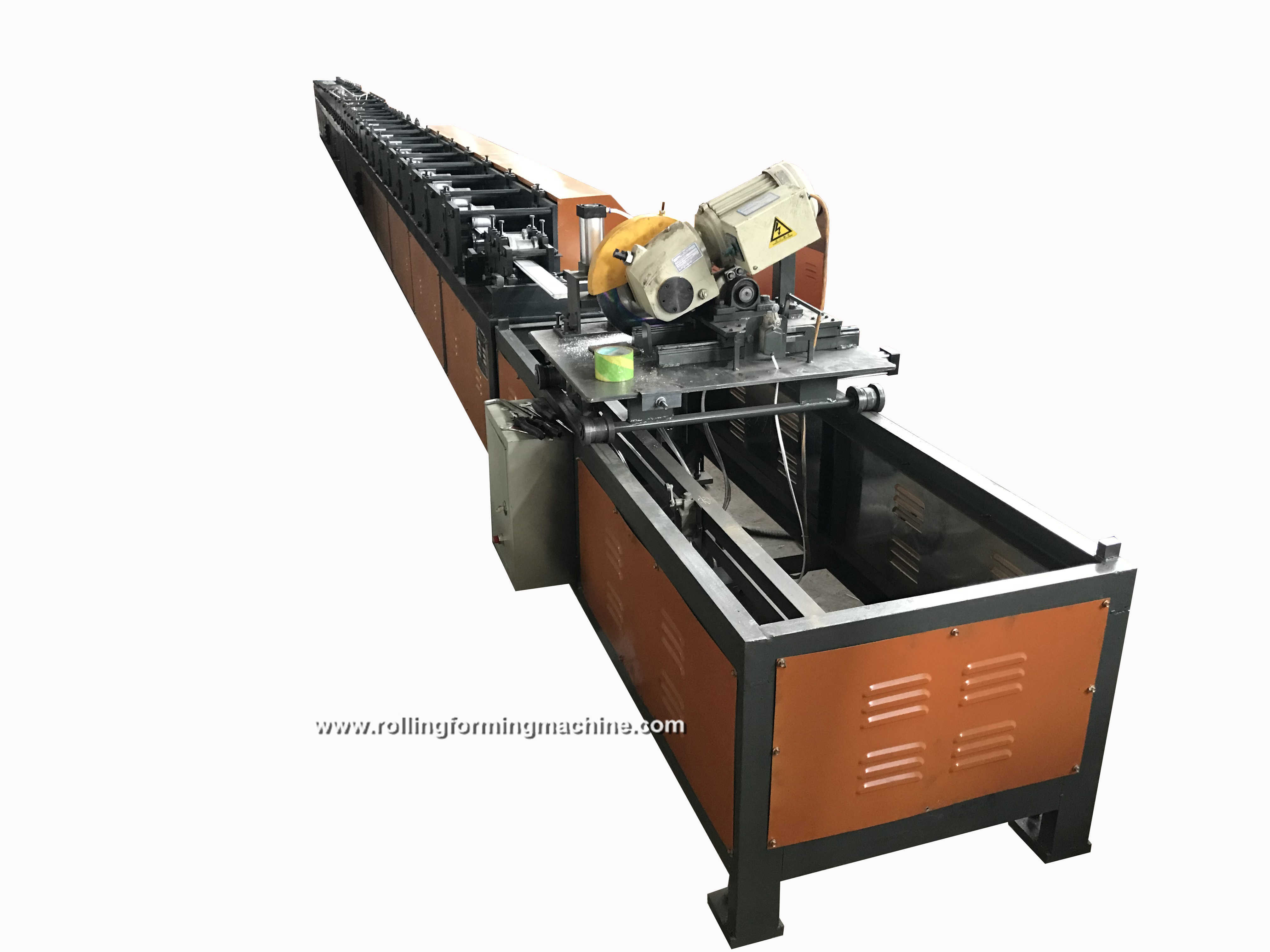

    The complete  line includes decoiler, forming machine, computer controlling system and run out tables. Our machines are equipped with a computer controlling system to keep products accurate.

    QQ截图20170329205629

    Diameter of Pu sandwich shutter door forming line

    NO

                Type

    Specification

    1

    Raw material Type PPGI
    Feeding width As custoemr’ need
    Thickness 0.3-0.8 mm

    2

    Decoiler Operation Manual
    Weight apacity 5 Tons

    3

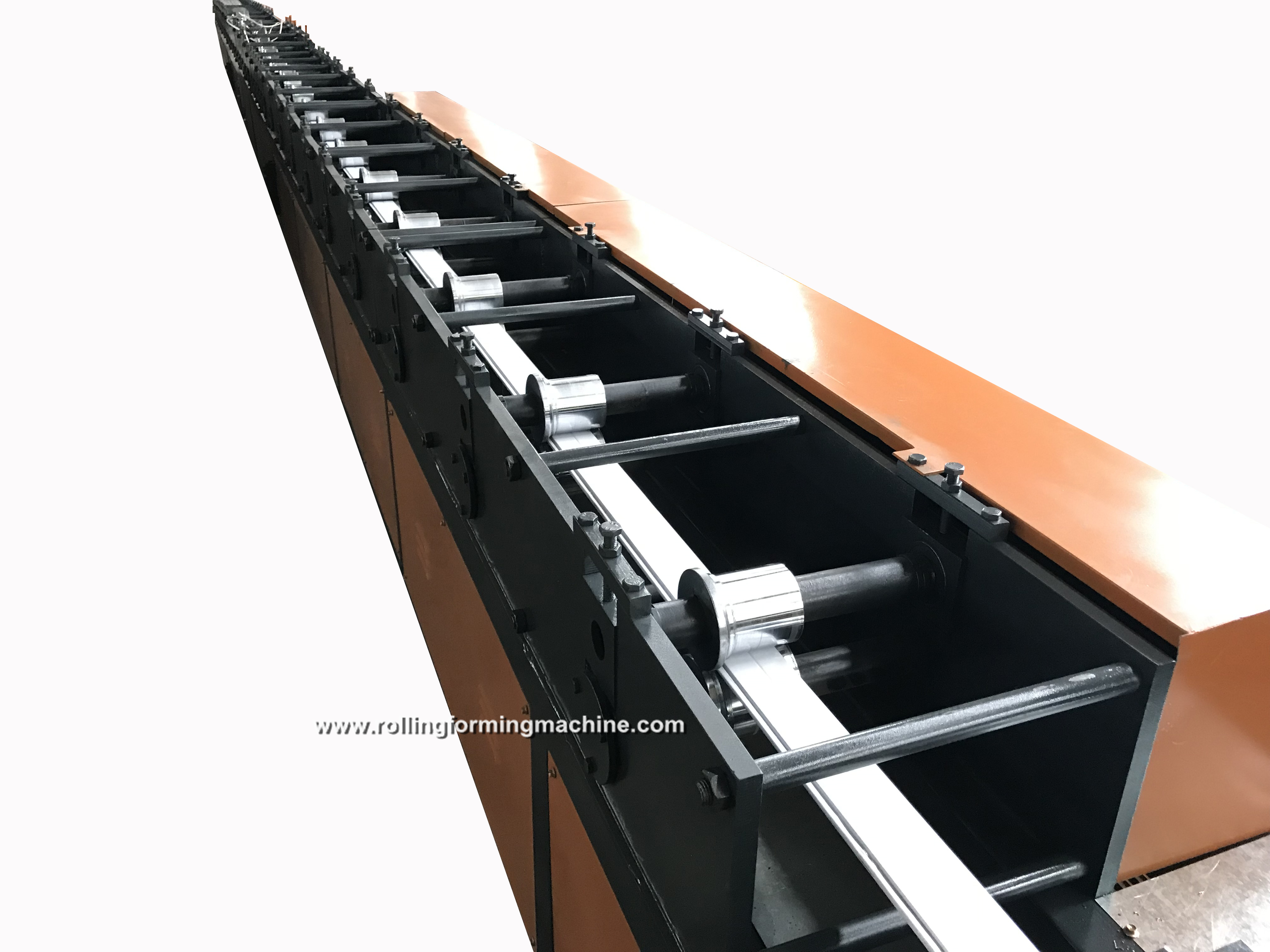

    Main body Roller station 38 row
    Diameter of shaft 42 mm
    Shaft material 45# with 0.05mm chrome
    Roller material 45# with 0.05mm chrome
    Type Chinese type
    Frame 300mm C-beam
    Frame thickness 16 mm
    Material Cr 12
    Operation Hydraulic automatic
    Working speed 8-12 m/min

    4

    Power Driving way Chain 1 inch
    Main motor 5.5 KW
    Voltage 380V/50HZ, 3 phase

    5

    Control box Electric box PLC control system, inventer
    PLC brand Delta made in Taiwan
    Inverter brand Delta made in Taiwan
    Language Chinese and English
